MID TRAVEL LIFT KIT W/ FRONT AND REAR 3.0 INCH DIAMETER ADJUSTABLE SHOCKS - LAND CRUISER 200

2008-2021 TOYOTA LAND CRUISER 200 SERIES SUSPENSION LIFT

MID TRAVEL UCA LCA / KING COILOVER KIT
PART #LC200-08-30-K3A
$10,783.22

2008-2021 TOYOTA LAND CRUISER 200 SERIES SUSPENSION LIFT
INSTALL INSTRUCTIONS



WHY

Performance bolt-on suspension systems are in our DNA. TC equipment is designed to be more durable and more reliable on the trail and is 100% hand crafted in the USA.

Our KING 3.0" shock packages offer maximum wheel travel and allow you to customize your ride for your specific application containing shocks with external compression adjusters. Recreation reliability and race proven parts - packaged by the Toyota specialists.

FEATURES

Bolt-on performance lift kit package. Built for the highest-level on and off-road suspension handling offering 2"-2.5" of lift capability.

UCAs are designed with added caster to aid in retaining factory alignment specs. This reduces the darting or wandering in the vehicle's steering when the lift kit is installed.

TOTAL CHAOS lower control arms are light weight, provide maximum ground clearance and are fully rebuildable. They include integrated steering stop tabs to retain factory turning angles and are 100% bolt on.

King's 3.0 coilover shocks feature large diameter shock bodies to increase fluid capacity for smoother, cooler running shocks.

Extended travel coil over shocks packaged with uniball upper control arms add 1" of additional droop wheel travel.

Front coilover shocks include King's Wide Range Compression Adjuster that gives 20 precise clicks of compression damping adjustment to further refine your ride quality.

King's rear 3.0 2-tube external bypass shocks feature compression and rebound adjustment for maximum tunability based on your vehicle's weight and driving style.

Rock sliders may cause interference with the rear reservoir due to their mounting location under the rocker panel.

Both front and rear shocks come standard with finned reservoirs to dramatically increase fluid capacity, heat dissipation and provide sustained damping performance even under the most punishing conditions.

Click Upper Control Arm - for specific product features on the UCA.

Click Lower Control Arm - for specific product features on the LCA.

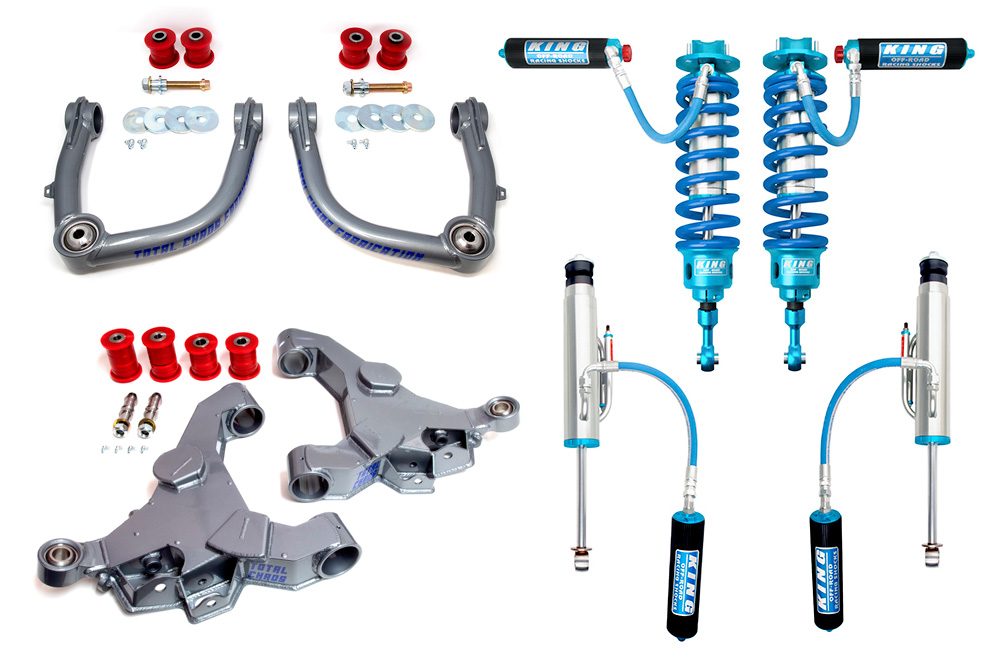

PARTS INCLUDED

200 SERIES LAND CRUISER UPPER CONTROL ARM KIT PN: 87504 - QTY: (1)

SINGLE SHOCK LOWER CONTROL ARM KIT PN: 87505-E - QTY: (1)

KING 3.0" FRONT COILOVERS W/ REMOTE RESERVOIRS AND COMPRESSION ADJUSTERS (PAIR) PN: KNG-33001-205A - QTY: 1

KING 3.0" REAR SHOCKS W/ REMOTE RESERVOIRS AND COMPRESSION ADJUSTERS (PAIR) PN: KNG-33001-206 - QTY: 1

WHEEL & TIRE

17" Wheel: 17" x 8.5" | 6" backspace    Tire: 285/70R17








MID TRAVEL LIFT KIT W/ FRONT AND REAR 3.0 INCH DIAMETER ADJUSTABLE SHOCKS - LAND CRUISER 200

2008-2021 TOYOTA LAND CRUISER 200 SERIES SUSPENSION LIFT

MID TRAVEL UCA LCA / KING COILOVER KIT
PART #LC200-08-30-K3A
$10,783.22

IN STOCK - CALL TO ORDER
INSTALL INSTRUCTIONS






WHY

Performance bolt-on suspension systems are in our DNA. TC equipment is designed to be more durable and more reliable on the trail and is 100% hand crafted in the USA.

Our KING 3.0" shock packages offer maximum wheel travel and allow you to customize your ride for your specific application containing shocks with external compression adjusters. Recreation reliability and race proven parts - packaged by the Toyota specialists.

FEATURES

Bolt-on performance lift kit package. Built for the highest-level on and off-road suspension handling offering 2"-2.5" of lift capability.

UCAs are designed with added caster to aid in retaining factory alignment specs. This reduces the darting or wandering in the vehicle's steering when the lift kit is installed.

TOTAL CHAOS lower control arms are light weight, provide maximum ground clearance and are fully rebuildable. They include integrated steering stop tabs to retain factory turning angles and are 100% bolt on.

King's 3.0 coilover shocks feature large diameter shock bodies to increase fluid capacity for smoother, cooler running shocks.

Extended travel coil over shocks packaged with uniball upper control arms add 1" of additional droop wheel travel.

Front coilover shocks include King's Wide Range Compression Adjuster that gives 20 precise clicks of compression damping adjustment to further refine your ride quality.

King's rear 3.0 2-tube external bypass shocks feature compression and rebound adjustment for maximum tunability based on your vehicle's weight and driving style.

Rock sliders may cause interference with the rear reservoir due to their mounting location under the rocker panel.

Both front and rear shocks come standard with finned reservoirs to dramatically increase fluid capacity, heat dissipation and provide sustained damping performance even under the most punishing conditions.

Click Upper Control Arm - for specific product features on the UCA.

Click Lower Control Arm - for specific product features on the LCA.

PARTS INCLUDED

200 SERIES LAND CRUISER UPPER CONTROL ARM KIT PN: 87504 - QTY: (1)

SINGLE SHOCK LOWER CONTROL ARM KIT PN: 87505-E - QTY: (1)

KING 3.0" FRONT COILOVERS W/ REMOTE RESERVOIRS AND COMPRESSION ADJUSTERS (PAIR) PN: KNG-33001-205A - QTY: 1

KING 3.0" REAR SHOCKS W/ REMOTE RESERVOIRS AND COMPRESSION ADJUSTERS (PAIR) PN: KNG-33001-206 - QTY: 1

WHEEL & TIRE

17" Wheel: 17" x 8.5" | 6" backspace    Tire: 285/70R17
