WHY
Long travel suspension systems offer better ride quality, additional component strength and maximum performance for any off-road adventure. Wider suspension increases the amount of wheel travel you cycle and allows you to maintain traction in rougher terrain. A wider track width will improve the vehicles cornering stability on and off-road.
Customize your ride for added vehicle weight and specific terrain. TC's custom King 3.0" internal bypass shocks designed specifically for this kit offer a plush ride on and off road.

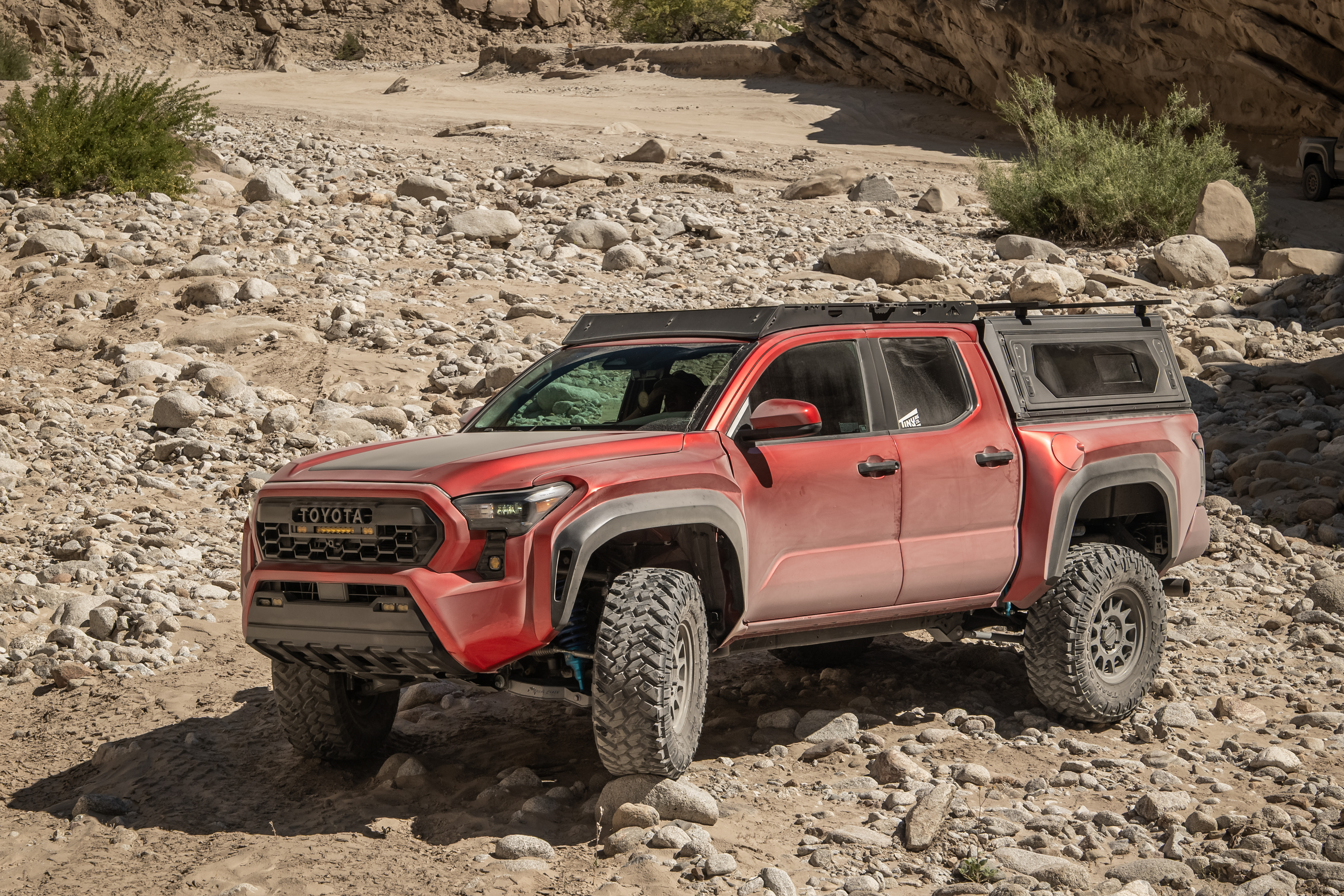

4th Gen Tacoma Long Travel
Extended 4130 chromoly upper and lower control arms increase track width 3" per side and bolt to factory control arm mounting locations. 100% bolt-on. No welding required.
13" of wheel travel with 4WD. To retain 4WD, one extended axle is required - SOLD SEPARATELY

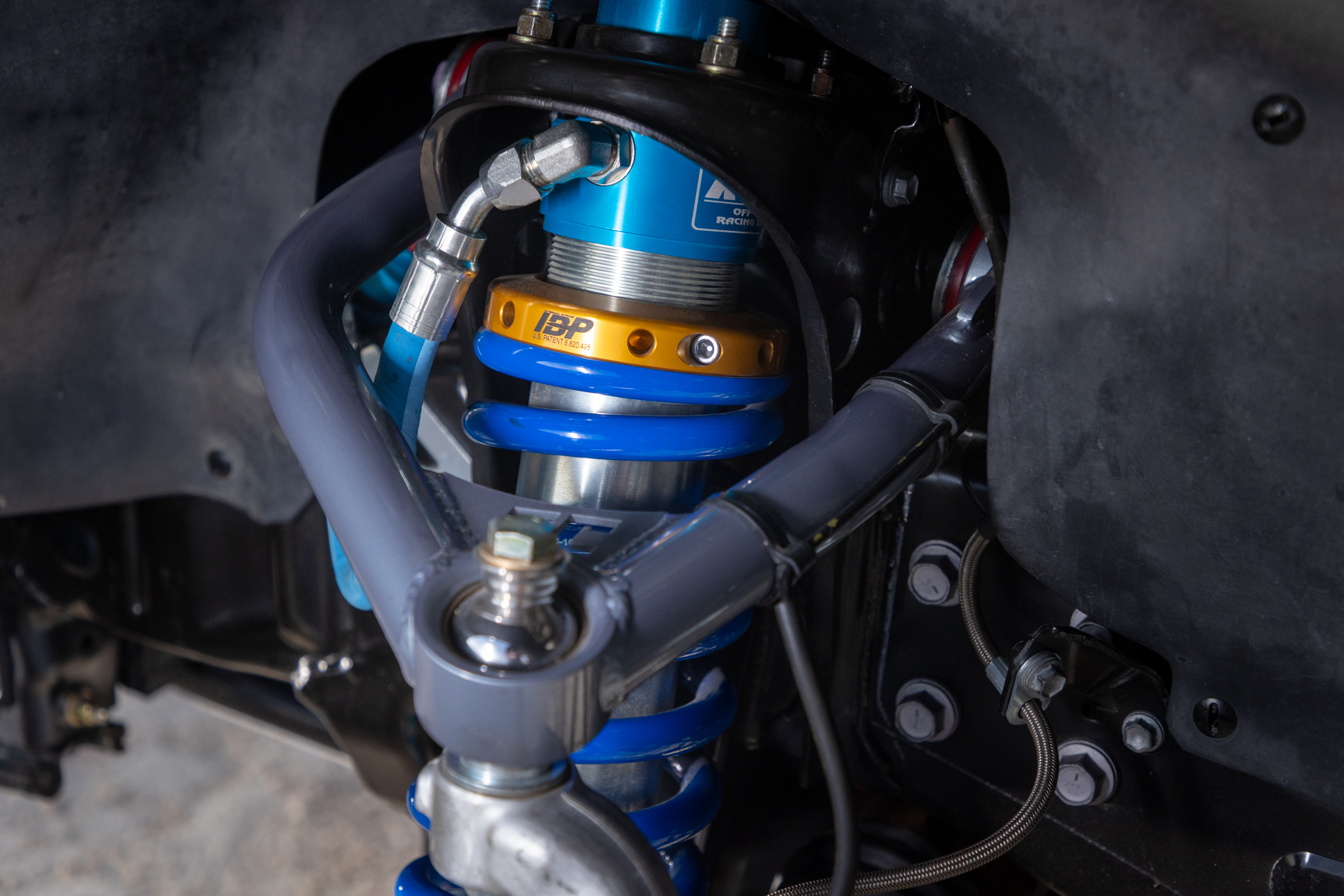

Upper and lower ball joints are upgraded to 1" uniballs for additional strength and maximum wheel travel.
TOTAL CHAOS 1" I.D. uniballs feature a heat treated stainless steel ball & race for superior corrosion resistance and component strength. A military grade PTFE woven fabric liner surrounds the uniball which helps prevent noise.
Upper and lower control arms utilize urethane bushings which greatly reduce bushing deflection compared to stock rubber bushings. Providing a tighter off- road feel and trail handling. All pivots include zerk fittings for easy lubrication maintenance.
Lower control arms are laser cut 4130 chromoly to be as light and as strong as possible. Arms are internally gusseted, fully boxed and include a single shock pocket. Integrated steering stop tabs retain the factory turning angle with no modification necessary to the OEM ball joint cradles.
Expedition Series Billet CNC machined uniball cups integrate into the boxed lower arm providing increased strength and factory turning radius.

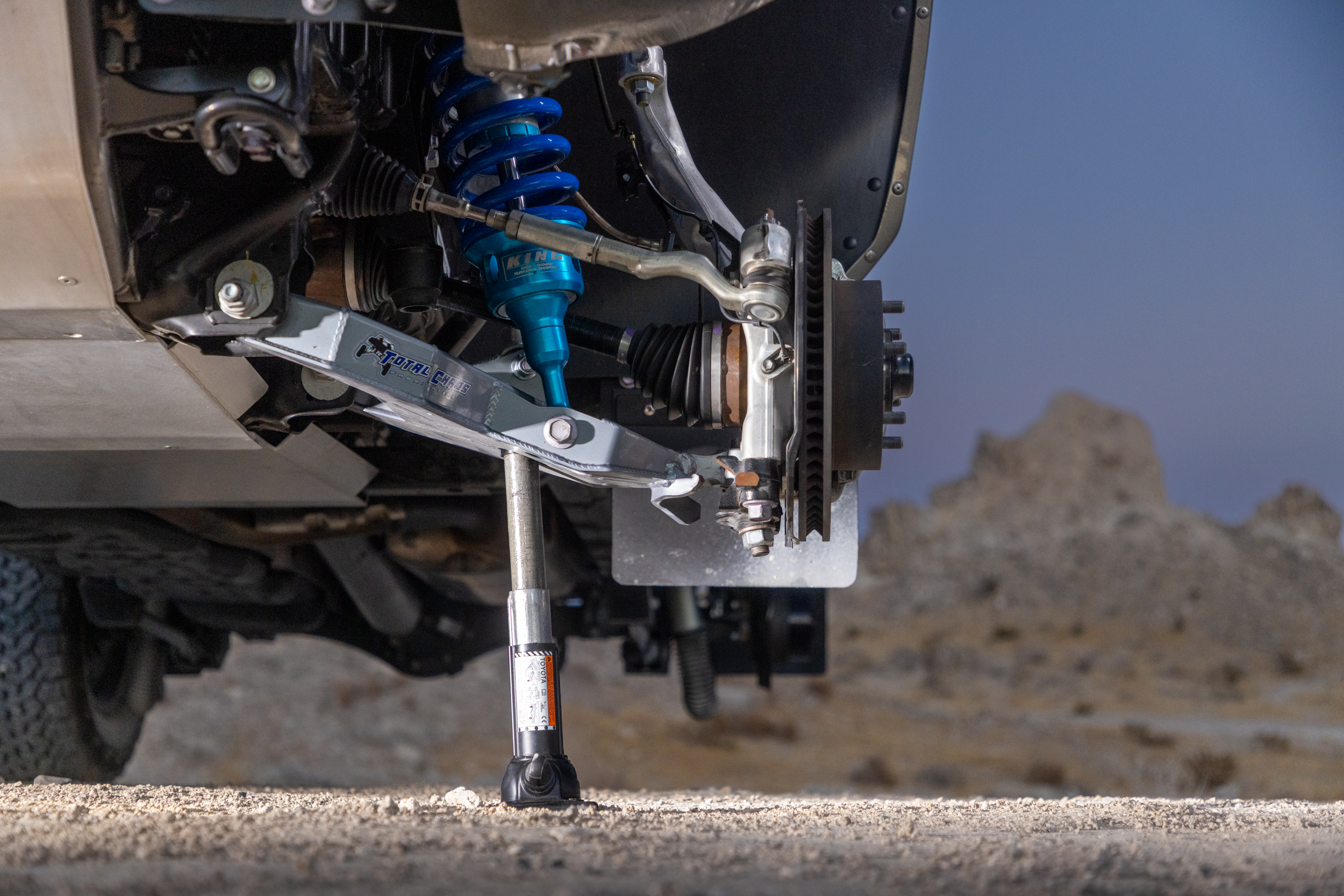

Recessed jack spud point is integrated into the bottom of the LCA so you can change a tire with a factory bottle jack.
Bump stop strike pad is integrated into the LCA for an optional weld-on bump stop accessory - PT# 86524-E-BUMP - SOLD SEPARATELY. Includes DuroBump rubber bump stops.

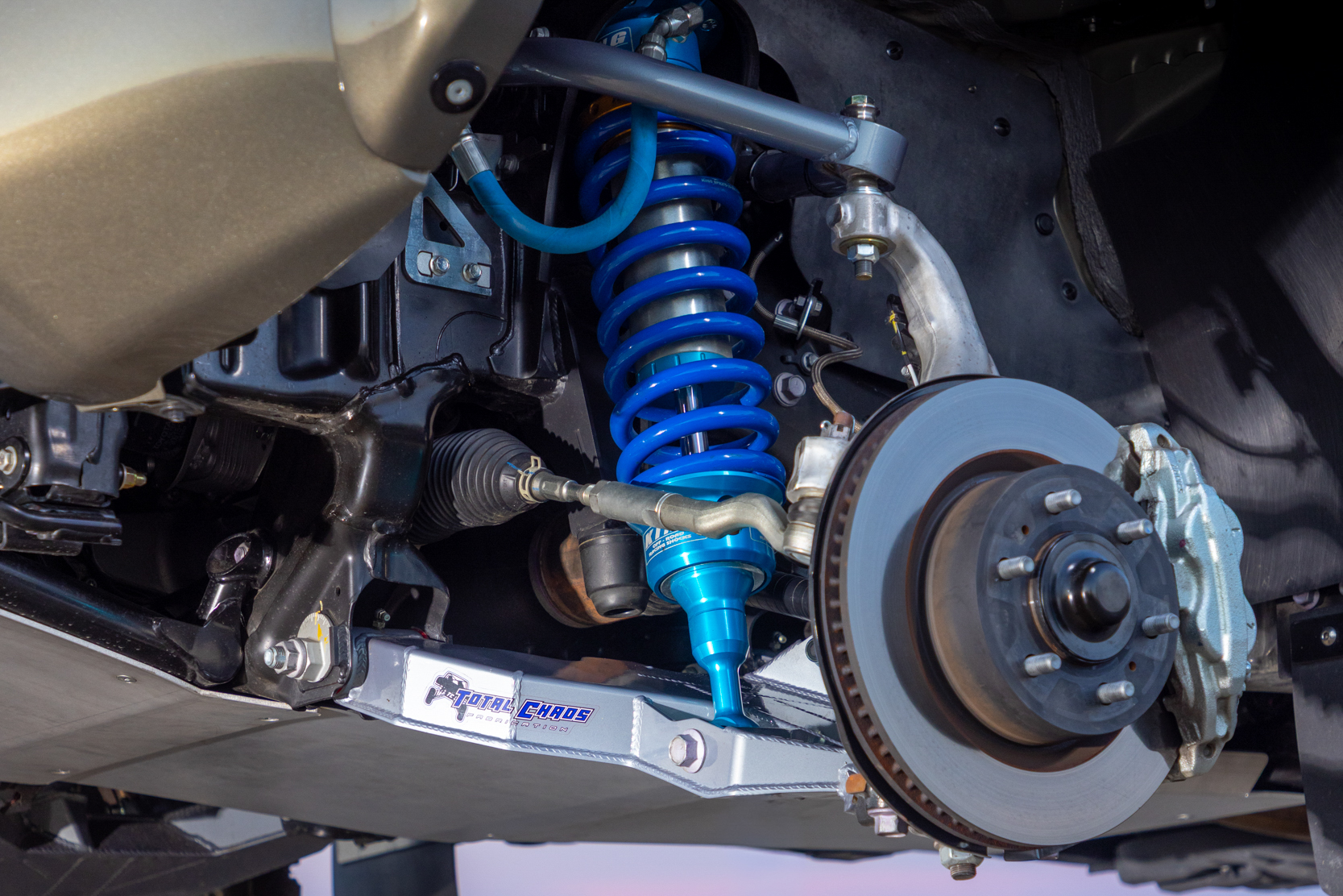

TC specific long travel coil over shocks are required and bolt to the factory coil bucket location. Extended travel OEM shocks are too short and will not work with this kit.
Single shock capability while retaining factory sway bar and sway bar links mounting location.
DOT approved stainless steel braided brake lines that do not expand are included.
TC custom 17-4 stainless hi-misalignment spacers and grade 8 mounting hardware is included.
TC custom 4WD extended axle is machined from 4340 and reuses the factory inner and outer CV joint to retain 4WD. TC system is designed to specifically use the 6 ball inner CV joint - OEM TOYOTA SOLD SEPARATELY.
No diff drop spacers are required with this kit.
Hand crafted in the U.S.A.
3 stage powder coat process includes a durable clear coat to provide a long lasting finish.
NOT COMPATIBLE WITH 4"-7" SPINDLE/DROP BRACKET LIFTS.
Important: TOTAL CHAOS aftermarket parts and supplied components have been engineered around the design of a factory chassis and related suspension components. Cross installing some aftermarket combinations of equipment may cause conflicts in fitment, and can cause geometry changes that were not designed or intended by TOTAL CHAOS. This can result in vehicle alignment issues, contact issues with other components, improper fitment issues, or cause accelerated wear and tear on some parts. TOTAL CHAOS can not guarantee that our suspension systems and accessories are compatible to be installed with another brands aftermarket equipment.

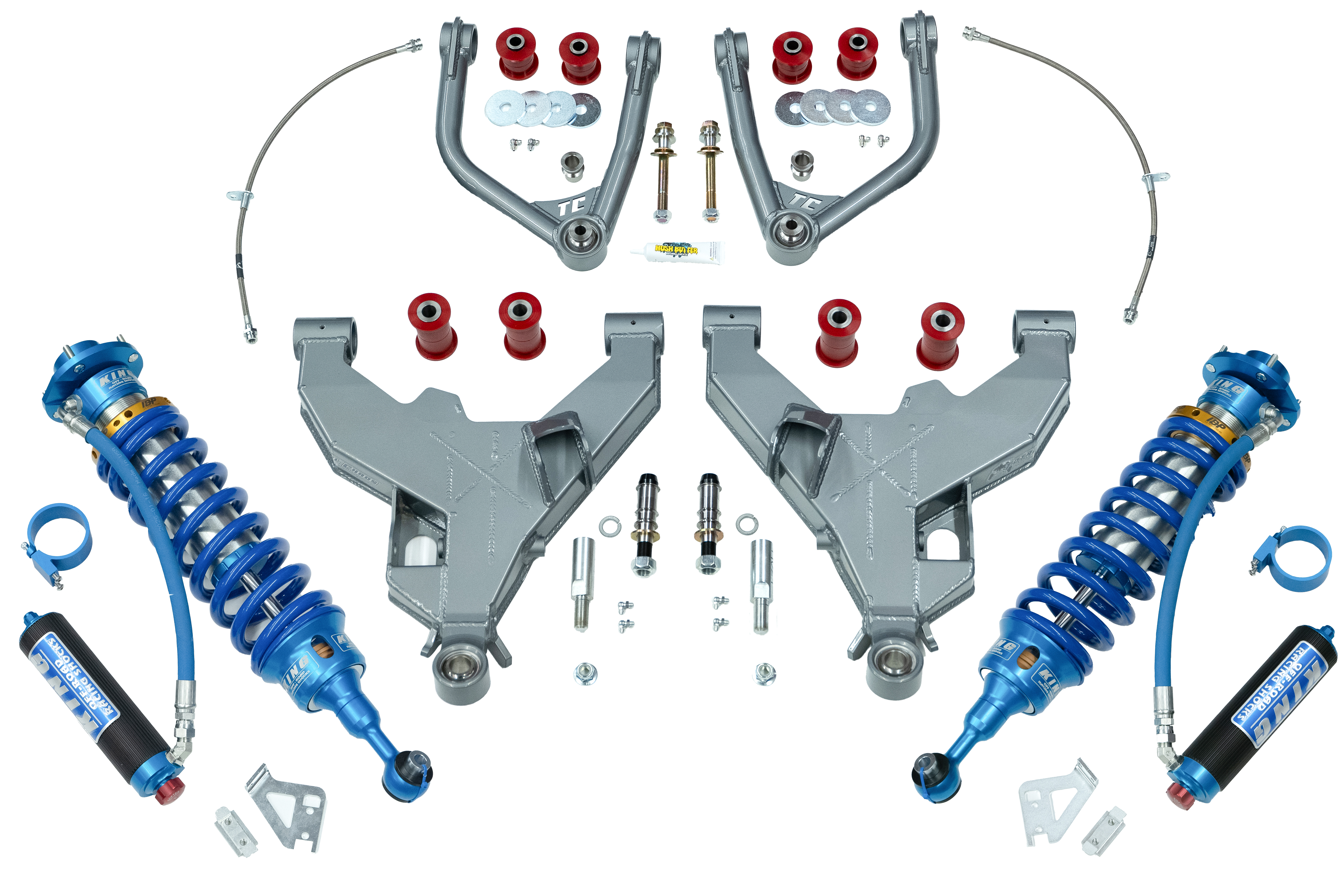

PARTS INCLUDED
DOES NOT INCLUDE TC CUSTOM 4WD EXTENDED AXLE TO RETAIN 4WD - SOLD SEPARATELY.
2024-CURRENT TACOMA +3" EXPEDITION SERIES LONG TRAVEL KIT PN: 24000-E
KING 3.0" IBP FRONT LONG TRAVEL COILOVERS W/ FINNED REMOTE RESERVOIRS AND COMPRESSION ADJUSTERS (PAIR) PN: KNG-TC734-01A
WHEEL & TIRE
17" Wheel: 17" x 8.5" | 6.2" backspace Tire: 35x12.50R17
