UPPER CONTROL ARMS - LEXUS LX470

1998-2007 LEXUS LX470 SUSPENSION

Urethane Bushing Pivot Uniball UCA

PART #99500

$917.72

1998-2007 LEXUS LX470 SUSPENSION

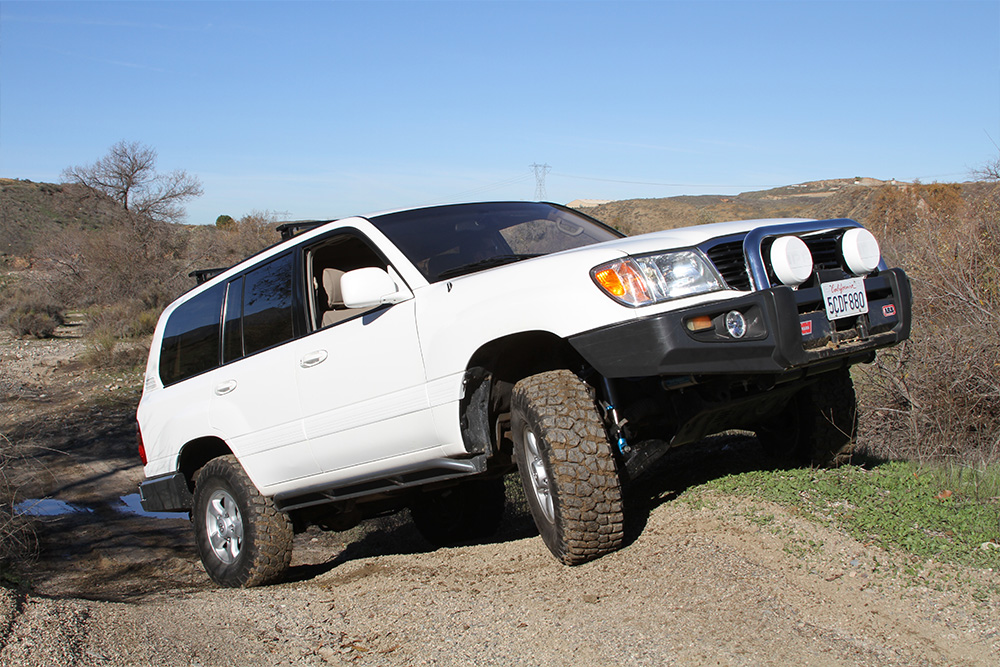

1-01-lexus-lx470-overland-4x4-4wd-camping-alabama-hills

INSTALL INSTRUCTIONS

WHY

Lifting the front of a vehicle with a set of coilovers may be step one in gaining more off-road performance, however installing just an aftermarket shock can cause limitations without upgrading the Upper Control Arm too.

Our UCA's are designed to add caster - offering better straight line tracking, as well as improved high speed stability and cornering. TC upper arms add component durability and allow for individual parts to be replaced including bushings and uniballs.

FEATURES

TC upper control arms combined with extended length coil over shocks will allow for up to 1" of additional wheel travel.

Designed to maintain factory alignment specs on vehicles with 1.5"-3" lift kits.

4130 chromoly tubular upper control arms are 100% bolt on.

The uniball cup placement is moved to correct the caster angle that is lost with aftermarket lift kits. Vehicles that have an increased ride height are harder to align. The added caster reduces the darting or wandering in the vehicles steering and helps retain the factory alignment specifications.

1" I.D. uniballs feature a heat-treated stainless-steel ball & heat-treated stainless-steel race for maximum corrosion resistance and component longevity. These uniballs also feature a military grade PTFE woven fabric liner that helps prevent noise and reduce maintenance.

CNC tapered spindle adapters convert the factory ball joint to a 1" uniball for easy installation.

Custom profile upper and lower hi-misalignment spacers are machined from 17-4 stainless-steel to maximize strength and wheel travel.

Urethane bushings reduce deflection compared to stock rubber bushings.

Control arm pivots include zerk fittings to grease the bushings and inner sleeves without disassembly.

3 stage powder coat process includes a durable clear coat to provide a long lasting finish.

Hand crafted in the U.S.A.

Complete Grade 8 hardware kit is included.

Upper Control Arm fits: 1998 LX470, 1999 LX470, 2000 LX470, 2001 LX470, 2002 LX470, 2003 LX470, 2004 LX470, 2005 LX470, 2006 LX470, 2007 LX470.

PARTS INCLUDED

WHEEL & TIRE

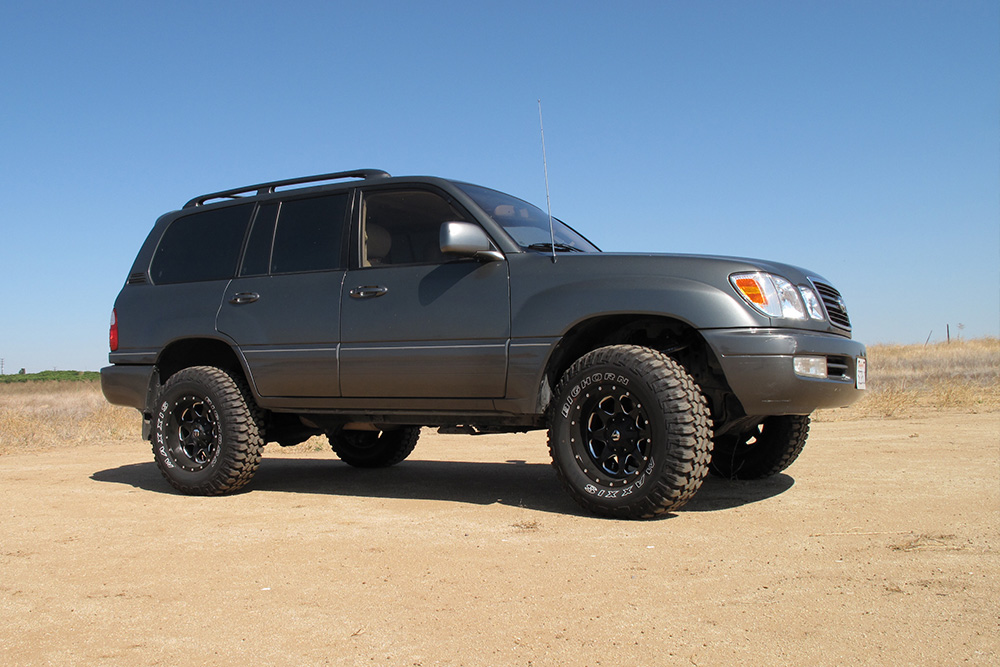

17" Wheel: 17" x 8.5" | 4.75" backspace Tire: 285/70R17

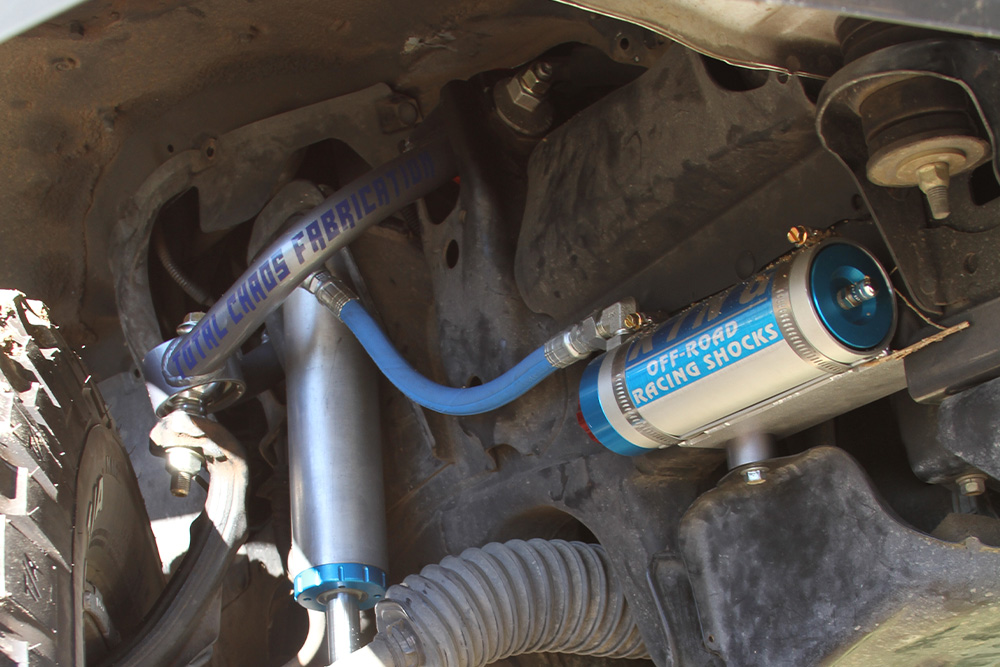

SHOCK INFO

PART #: 25001-259A

PART #: 6ST 004 1R

UPPER CONTROL ARMS - LEXUS LX470

1998-2007 LEXUS LX470 SUSPENSION

Urethane Bushing Pivot Uniball UCA

PART #99500

$917.72

INSTALL INSTRUCTIONS

1998-2007 LEXUS LX470 SUSPENSION

WHY

Lifting the front of a vehicle with a set of coilovers may be step one in gaining more off-road performance, however installing just an aftermarket shock can cause limitations without upgrading the Upper Control Arm too.

Our UCA's are designed to add caster - offering better straight line tracking, as well as improved high speed stability and cornering. TC upper arms add component durability and allow for individual parts to be replaced including bushings and uniballs.

FEATURES

TC upper control arms combined with extended length coil over shocks will allow for up to 1" of additional wheel travel.

Designed to maintain factory alignment specs on vehicles with 1.5"-3" lift kits.

4130 chromoly tubular upper control arms are 100% bolt on.

The uniball cup placement is moved to correct the caster angle that is lost with aftermarket lift kits. Vehicles that have an increased ride height are harder to align. The added caster reduces the darting or wandering in the vehicles steering and helps retain the factory alignment specifications.

1" I.D. uniballs feature a heat-treated stainless-steel ball & heat-treated stainless-steel race for maximum corrosion resistance and component longevity. These uniballs also feature a military grade PTFE woven fabric liner that helps prevent noise and reduce maintenance.

CNC tapered spindle adapters convert the factory ball joint to a 1" uniball for easy installation.

Custom profile upper and lower hi-misalignment spacers are machined from 17-4 stainless-steel to maximize strength and wheel travel.

Urethane bushings reduce deflection compared to stock rubber bushings.

Control arm pivots include zerk fittings to grease the bushings and inner sleeves without disassembly.

3 stage powder coat process includes a durable clear coat to provide a long lasting finish.

Hand crafted in the U.S.A.

Complete Grade 8 hardware kit is included.

Upper Control Arm fits: 1998 LX470, 1999 LX470, 2000 LX470, 2001 LX470, 2002 LX470, 2003 LX470, 2004 LX470, 2005 LX470, 2006 LX470, 2007 LX470.

PARTS INCLUDED

WHEEL & TIRE

17" Wheel: 17" x 8.5" | 4.75" backspace Tire: 285/70R17

SHOCK INFO

PART #: 25001-259A

PART #: 6ST 004 1R
