EXPEDITION SERIES LOWER CONTROL ARMS
- 4TH GEN TACOMA

2024-CURRENT TOYOTA TACOMA SUSPENSION

PERFORMANCE LOWER A-ARM
PART #86524-E
$2,779.00

2024-CURRENT TOYOTA TACOMA SUSPENSION000_24_Tacoma_KOH_web200_86524 Fender Well Lit v0201_24_Tacoma_KOH_web2021_86524-E Bottom Detail Bench IMG_6383 v2022-0004_24_Tacoma_KOH_web203_86524-E Top Detail Bench Uniball Truss2024-4th-gen-tacoma-mid-travel-rock-crawling-4x4-web2024-4th-gen-toyota-tacoma-performance-lift-desert-sunrise-web2024-tacoma-mid-travel-suspension-lift-off-road-jump-web4th-gen-tacoma-performance-lower-control-arms-mid-travel-kit-web4th-gen-tacoma-performance-suspension-lift-uca-lca-silt-bed-desert-weblifted-4th-gen-tacoma-sunrise-sand-dunes-crest-weblifted-4th-gen-toyota-tacoma-off-road-sunrise-webmid-travel-4th-gen-tacoma-performance-uca-truck-jump-web



WHY

Stock ball joints and rubber bushings eventually wear out and must be replaced. Sloppy steering and uneven tire wear are common when these parts become worn out or damaged. You cannot individually order bushings or ball joints from Toyota for the factory lower control arms.

LCA's are 100% bolt-on and upgrade ball joints to a 1" stainless steel uniball to maximize strength. Rubber bushings are replaced with urethane bushings to provide better off road trail handling and steering response. Less bushing deflection allows the vehicle steering to be more responsive at higher speed on and off road.

These fully rebuildable lower control arms are hand crafted from 4130 chromoly construction making them much stronger than the stock units.



Total Chaos Fabrication 2024 Tacoma

FEATURES

Light weight. Maximum ground clearance compared to stock units. Fully rebuildable. 100% Bolt-on.

Increased caster added. Lower uniball moved forward 1/4 inch for better overall handling.

Billet CNC machined uniball cup houses a 1 inch 100% stainless steel uniball that upgrades the factory ball joints for greater articulation and strength.

Integrated steering stop tabs retain factory turning angles.

Urethane pivot bushings reduce deflection compared to a rubber bushing offering a tighter steering feel. Zerk fittings allow for easy maintenance.

4130 chromoly laser cut plates are fully boxed and include internal gussets.

Bump stop strike pad included. Optional weld on bump stop accessory is available PT#86524-E-BUMP Kit includes DuroBump rubber bump stops.

Recessed jack point integrated into arm bottom plate.

Single shock capability while retaining factory sway bar mounting location.

Three stage powder coat includes a durable clear coat.

Hand crafted in the U.S.A.

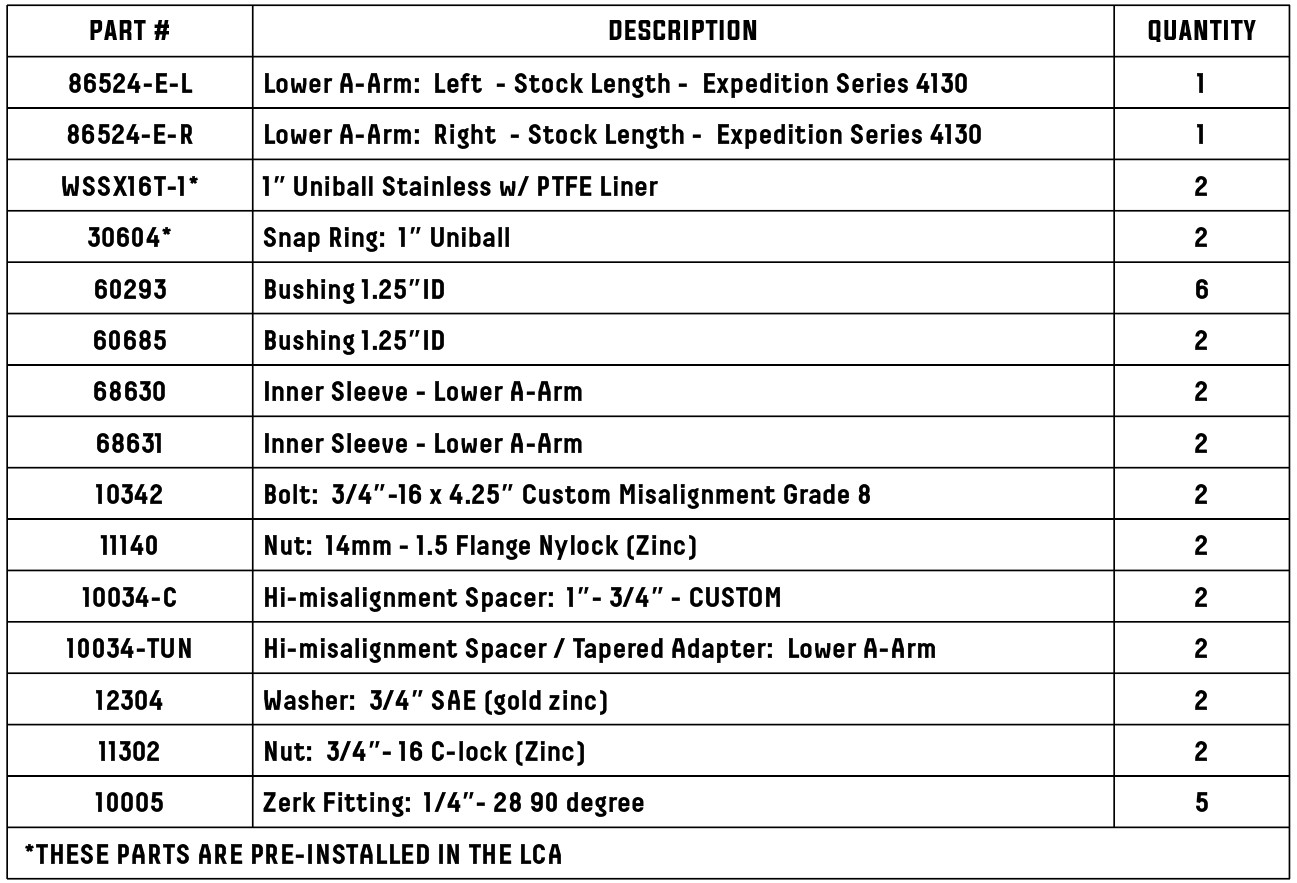

PARTS INCLUDED

SHOCK INFO


PART #: KNG-25001-408A









EXPEDITION SERIES LOWER CONTROL ARMS
- 4TH GEN TACOMA
2024-CURRENT TOYOTA TACOMA SUSPENSION

PERFORMANCE LOWER A-ARM
PART #86524-E
$2,779.00

IN STOCK - CALL TO ORDER
INSTALL INSTRUCTIONS



WHY

Stock ball joints and rubber bushings eventually wear out and must be replaced. Sloppy steering and uneven tire wear are common when these parts become worn out or damaged. You cannot individually order bushings or ball joints from Toyota for the factory lower control arms.

LCA's are 100% bolt-on and upgrade ball joints to a 1" stainless steel uniball to maximize strength. Rubber bushings are replaced with urethane bushings to provide better off road trail handling and steering response. Less bushing deflection allows the vehicle steering to be more responsive at higher speed on and off road.

These fully rebuildable lower control arms are hand crafted from 4130 chromoly construction making them much stronger than the stock units.



FEATURES

Light weight. Maximum ground clearance compared to stock units. Fully rebuildable. 100% Bolt-on.

Increased caster added. Lower uniball moved forward 1/4 inch for better overall handling.

Billet CNC machined uniball cup houses a 1 inch 100% stainless steel uniball that upgrades the factory ball joints for greater articulation and strength.

Integrated steering stop tabs retain factory turning angles.

Urethane pivot bushings reduce deflection compared to a rubber bushing offering a tighter steering feel. Zerk fittings allow for easy maintenance.

4130 chromoly laser cut plates are fully boxed and include internal gussets.

Bump stop strike pad included. Optional weld on bump stop accessory is available PT#86524-E-BUMP Kit includes DuroBump rubber bump stops.

Recessed jack point integrated into arm bottom plate.

Single shock capability while retaining factory sway bar mounting location.

Three stage powder coat includes a durable clear coat.

Hand crafted in the U.S.A.

PARTS INCLUDED

SHOCK INFO


PART #: KNG-25001-408A
