Total Chaos Fabrcation

UPPER CONTROL ARMS - 2ND GEN SEQUOIA

2008-2022 TOYOTA SEQUOIA SUSPENSION

Urethane Bushing Pivot Uniball UCA

PART #87500

$917.72

2008-2022 TOYOTA SEQUOIA SUSPENSION

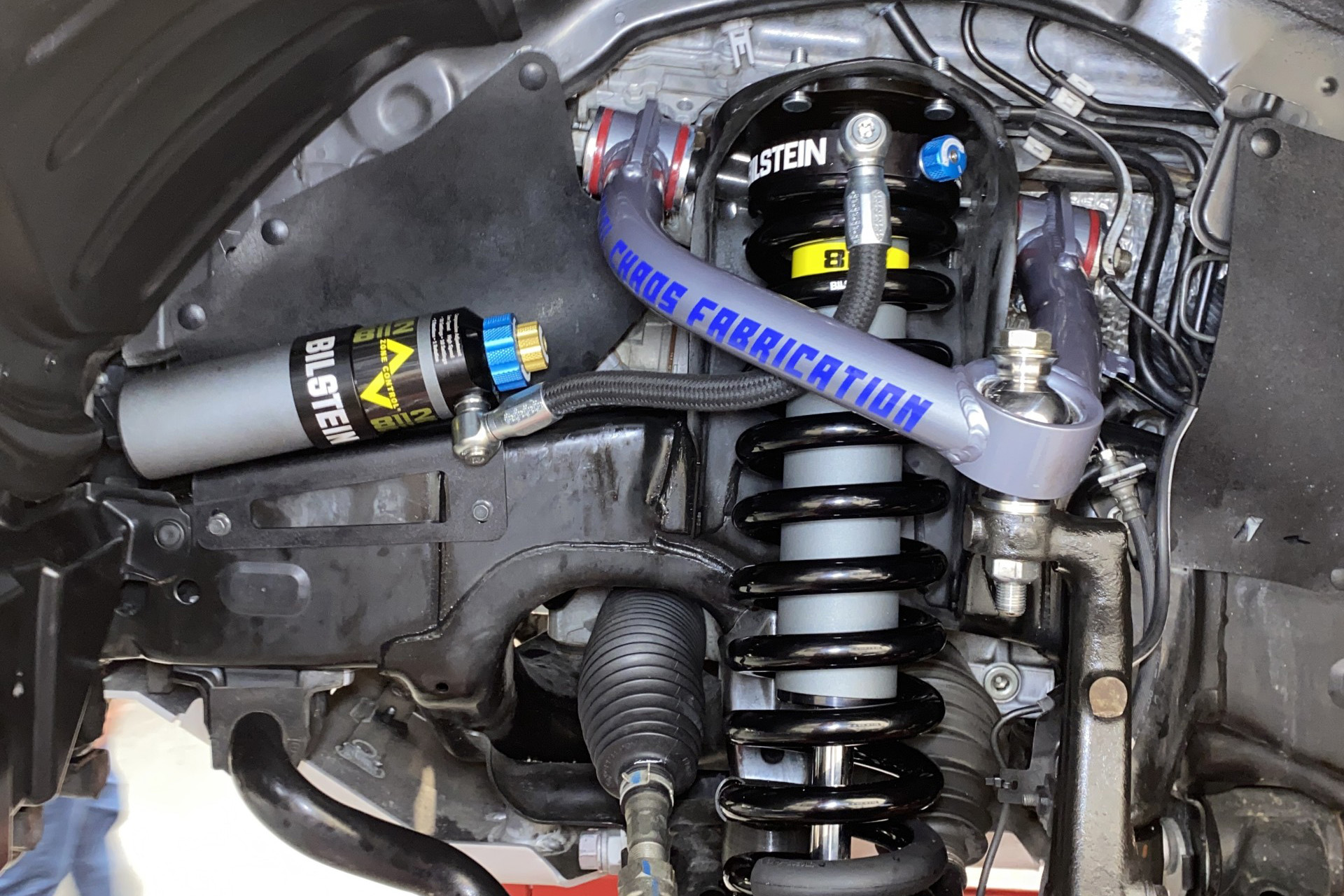

2nd-gen-toyota-sequoia-uca-king-shocks-coilovers-suspension-lift-fenderwell

INSTALL INSTRUCTIONS

WHY

Lifting the front of a vehicle with a set of coilovers may be step one in gaining more off-road performance, however installing just an aftermarket shock can cause limitations without upgrading the Upper Control Arm too. TC upper arms add component durability and allow for individual parts to be replaced including bushings and uniballs.

TC tubular Sequoia arms provide more clearance and will allow a 3.0" diameter coil over shock to be installed.

FEATURES

UCA's are designed with added caster to aid in retaining factory alignment specs when aftermarket lift kits are installed. This reduces the darting or wandering in the vehicle's steering when 2.5''-3'' lift kits are installed.

Upper control arms combined with extended length coilover shocks will allow for up to 1'' of additional wheel droop travel.

Urethane bushings reduce bushing deflection compared to stock rubber bushings.

4130 chromoly tubular upper control arms are 100% bolt on.

CNC tapered spindle adapters convert the factory ball joint to a 1" uniball for added component strength & maximum wheel travel.

TOTAL CHAOS includes 1" I.D. uniballs that feature a heat-treated stainless-steel ball & heat-treated stainless-steel race for maximum corrosion resistance and component longevity. These uniballs also feature a military grade PTFE woven fabric liner that helps prevent noise.

Custom profile upper and lower hi-misalignment spacers maximize droop wheel travel and are machined from heat treated 17-4 stainless steel.

Control arm pivots include zerk fittings to grease the bushings and inner sleeves without disassembly.

3 stage powder coat process includes a durable clear coat to provide a long lasting finish.

Hand crafted in the U.S.A.

Complete Grade 8 hardware kit is included.

Upper Control Arm fits: 2008 Sequoia, 2009 Sequoia, 2010 Sequoia, 2011 Sequoia, 2012 Sequoia, 2013 Sequoia, 2014 Sequoia, 2015 Sequoia, 2016 Sequoia, 2017 Sequoia, 2018 Sequoia, 2019 Sequoia, 2020 Sequoia, 2021 Sequoia.

PARTS INCLUDED

WHEEL & TIRE

17" Wheel: 17" x 8.5" | 4.75" backspace Tire: 35x12.50R17 (requires some trimming)

SHOCK INFO

PART #: KNG-25001-143A-EXT

IN STOCK - $2,287

PART #: 90267

PART #: 6CT 002 1A

HEIM JOINT PIVOT UPGRADE

UPPER CONTROL ARMS - 2ND GEN SEQUOIA

2008-2022 TOYOTA SEQUOIA SUSPENSION

Urethane Bushing Pivot Uniball UCA

PART #87500

$917.72

INSTALL INSTRUCTIONS

2008-2022 TOYOTA SEQUOIA SUSPENSION

WHY

Lifting the front of a vehicle with a set of coilovers may be step one in gaining more off-road performance, however installing just an aftermarket shock can cause limitations without upgrading the Upper Control Arm too. TC upper arms add component durability and allow for individual parts to be replaced including bushings and uniballs.

TC tubular Sequoia arms provide more clearance and will allow a 3.0" diameter coil over shock to be installed.

FEATURES

UCA's are designed with added caster to aid in retaining factory alignment specs when aftermarket lift kits are installed. This reduces the darting or wandering in the vehicle's steering when 2.5''-3'' lift kits are installed.

Upper control arms combined with extended length coilover shocks will allow for up to 1'' of additional wheel droop travel.

Urethane bushings reduce bushing deflection compared to stock rubber bushings.

4130 chromoly tubular upper control arms are 100% bolt on.

CNC tapered spindle adapters convert the factory ball joint to a 1" uniball for added component strength & maximum wheel travel.

TOTAL CHAOS includes 1" I.D. uniballs that feature a heat-treated stainless-steel ball & heat-treated stainless-steel race for maximum corrosion resistance and component longevity. These uniballs also feature a military grade PTFE woven fabric liner that helps prevent noise.

Custom profile upper and lower hi-misalignment spacers maximize droop wheel travel and are machined from heat treated 17-4 stainless steel.

Control arm pivots include zerk fittings to grease the bushings and inner sleeves without disassembly.

3 stage powder coat process includes a durable clear coat to provide a long lasting finish.

Hand crafted in the U.S.A.

Complete Grade 8 hardware kit is included.

Upper Control Arm fits: 2008 Sequoia, 2009 Sequoia, 2010 Sequoia, 2011 Sequoia, 2012 Sequoia, 2013 Sequoia, 2014 Sequoia, 2015 Sequoia, 2016 Sequoia, 2017 Sequoia, 2018 Sequoia, 2019 Sequoia, 2020 Sequoia, 2021 Sequoia.

PARTS INCLUDED

WHEEL & TIRE

17" Wheel: 17" x 8.5" | 4.75" backspace Tire: 35x12.50R17 (requires some trimming)

SHOCK INFO

PART #: KNG-25001-143A-EXT

IN STOCK - $2,287

PART #: 90267

PART #: 6CT 002 1A

HEIM JOINT PIVOT UPGRADE
