3RD GEN TUNDRA EXPEDITION SERIES LOWER CONTROL ARMS

2022-2024 TOYOTA TUNDRA SUSPENSION

Performance Lower A-Arm
PART #87525-E
$3,475.00

2022-2024 TOYOTA TUNDRA SUSPENSION1-01-3rd-gen-2022-toyota-tundra-boxed-lower-control-arms-3.0-IBP-coilovers2-01-3rd-gen-toyota-tundra-aftermarket-lower-control-arms-detail2-02-3rd-gen-tundra-performance-uniball-lower-control-arms-web3-01-3rd-gen-tundra-chromoly-uniball-lower-control-arm4-01-3rd-gen-tundra-uniball-boxed-lower-control-arm-back-side-detail-web5-01-3rd-gen-tundra-uniball-lower-control-arm-detail-web6-01-3rd-gen-tundra-lower-control-arm-underside-detail-web



WHY

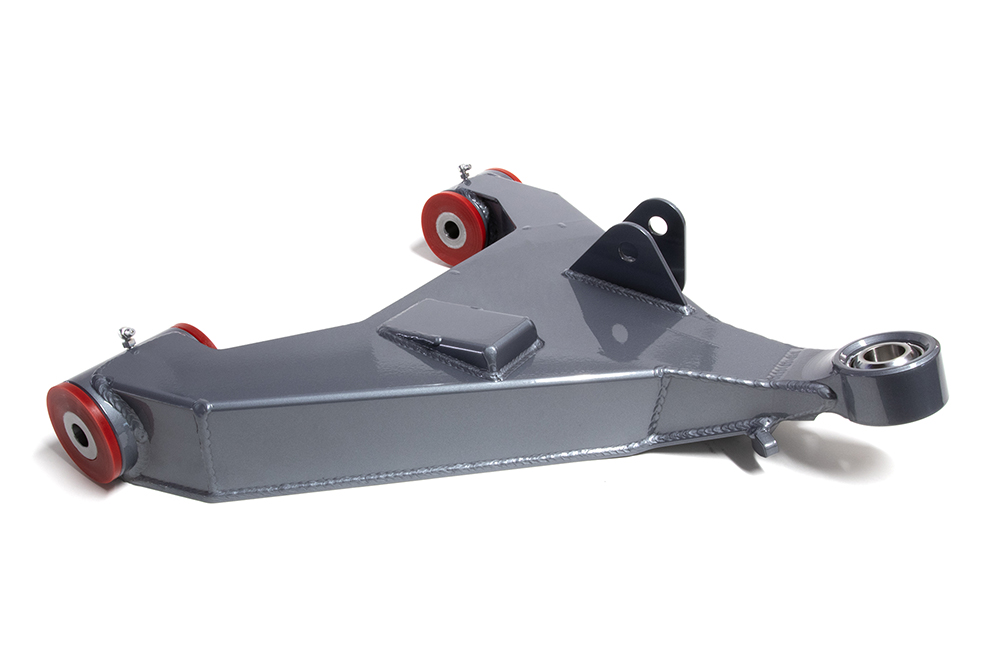

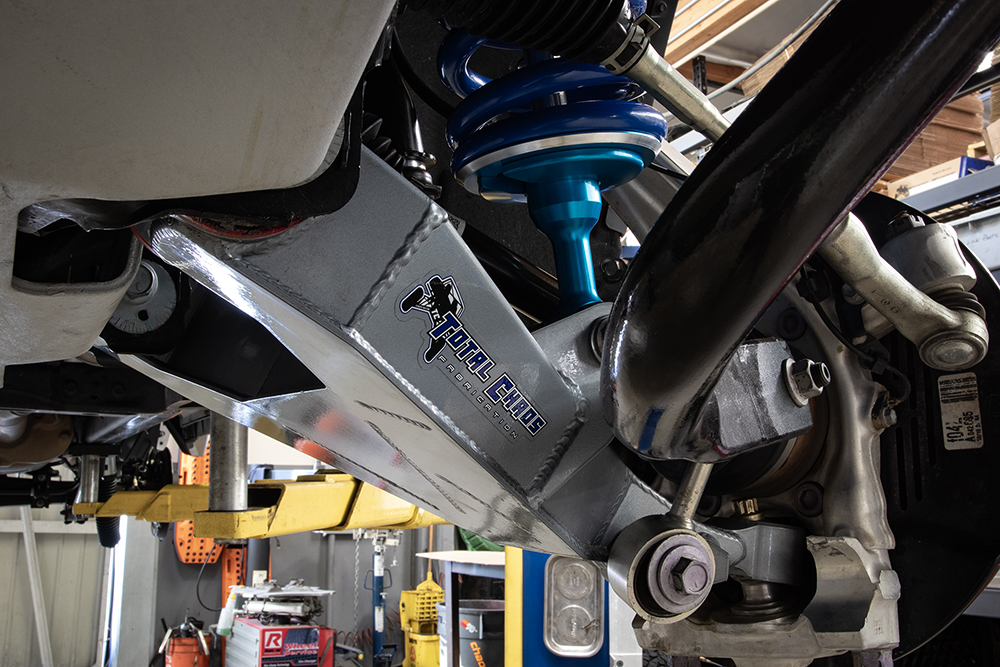

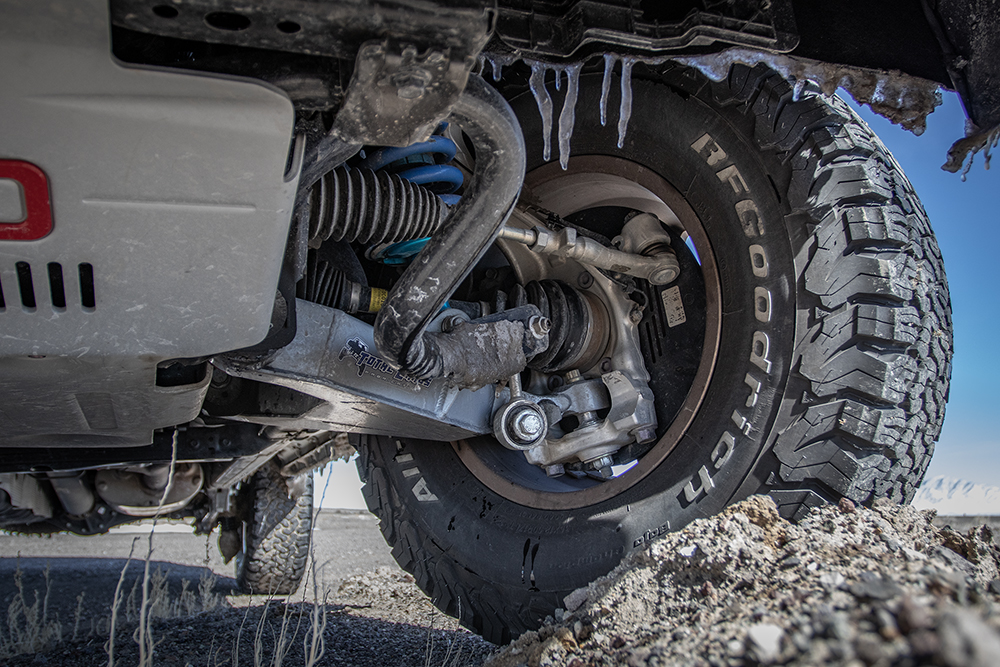

Lower Control Arms are 100% bolt-on and upgrade ball joints to a 1" stainless steel uniball to maximize strength. Rubber bushings are replaced with urethane bushings to provide better off road trail handling and steering response. Less bushing deflection allows the vehicle steering to be more responsive at higher speed on and off road.

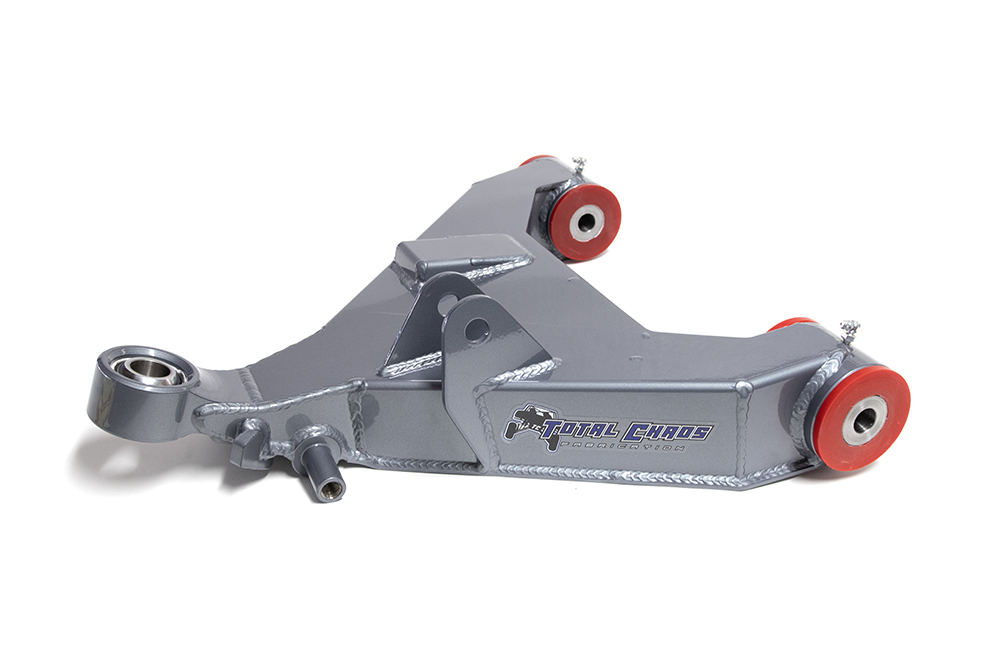

These fully rebuildable lower control arms are hand crafted from 4130 chromoly construction making them much stronger than the stock units.

Stock ball joints and rubber bushings eventually wear out and need to be replaced. l Sloppy steering and uneven tire wear are common when these parts become worn out or damaged. You cannot individually order bushings or ball joints from Toyota for the factory lower control arms on the 3rd Gen Tundra.

FEATURES

Light weight. Maximum ground clearance. Fully rebuildable. Bolt on.

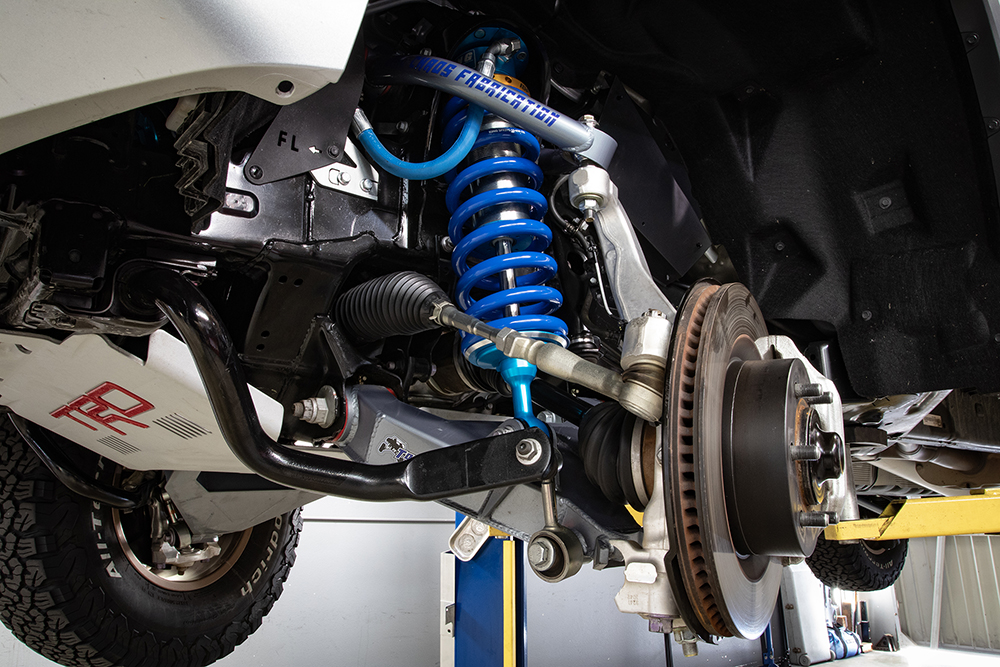

Will work with all aftermarket brand shocks, up to a 3.0"

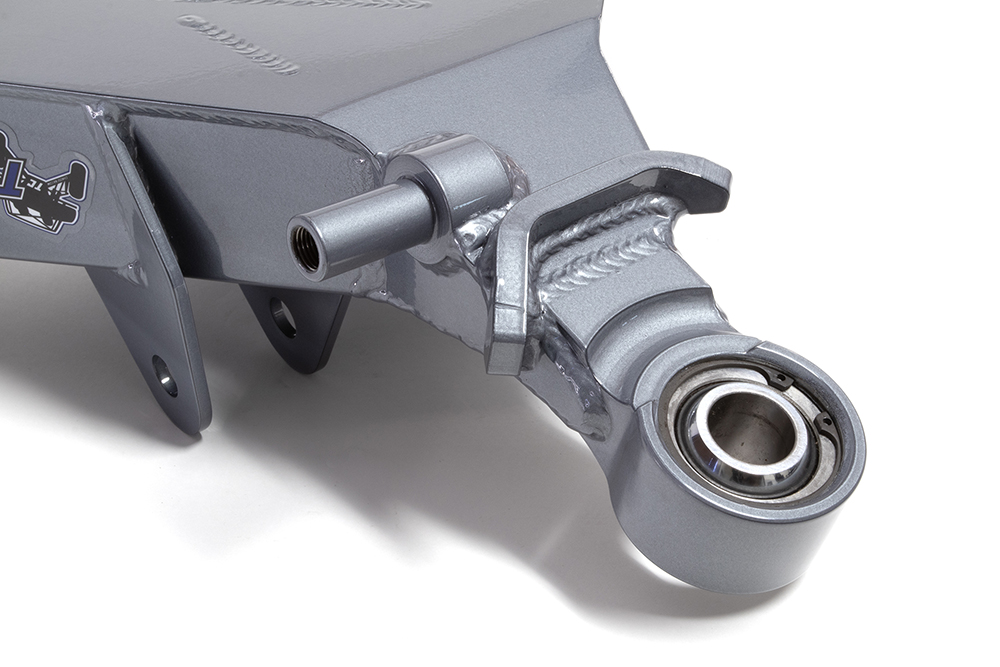

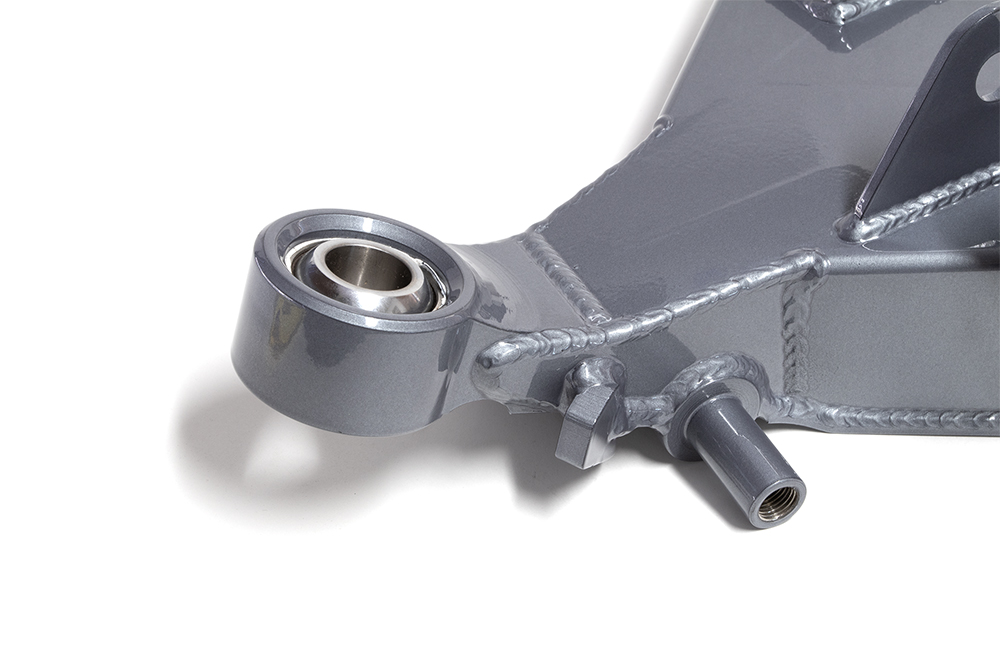

Billet CNC machined uniball cup houses a 1" 100% stainless steel uniball that upgrades the factory ball joints for greater articulation and strength.

Integrated steering stop tabs retain factory turning angles.

Urethane pivot bushings reduce deflection compared to a rubber bushing offering a tighter steering feel.

Zerk fittings allow for easy urethane bushing maintenance.

4130 chromoly laser cut plates are fully boxed and include internal gussets.

Three stage powder coat includes a durable clear coat.

Hand crafted in the U.S.A.

NOT COMPATIBLE WITH 4"-7" SPINDLE/DROP BRACKET LIFTS.








3RD GEN TUNDRA EXPEDITION SERIES LOWER CONTROL ARMS
2022-2024 TOYOTA TUNDRA SUSPENSION

Performance Lower A-Arm
PART #87525-E
$3,475.00

IN STOCK - CALL TO ORDER
INSTALL INSTRUCTIONS



WHY

Lower Control Arms are 100% bolt-on and upgrade ball joints to a 1" stainless steel uniball to maximize strength. Rubber bushings are replaced with urethane bushings to provide better off road trail handling and steering response. Less bushing deflection allows the vehicle steering to be more responsive at higher speed on and off road.

These fully rebuildable lower control arms are hand crafted from 4130 chromoly construction making them much stronger than the stock units.

Stock ball joints and rubber bushings eventually wear out and need to be replaced. l Sloppy steering and uneven tire wear are common when these parts become worn out or damaged. You cannot individually order bushings or ball joints from Toyota for the factory lower control arms on the 3rd Gen Tundra.

FEATURES

Light weight. Maximum ground clearance. Fully rebuildable. Bolt on.

Will work with all aftermarket brand shocks, up to a 3.0"

Billet CNC machined uniball cup houses a 1" 100% stainless steel uniball that upgrades the factory ball joints for greater articulation and strength.

Integrated steering stop tabs retain factory turning angles.

Urethane pivot bushings reduce deflection compared to a rubber bushing offering a tighter steering feel.

Zerk fittings allow for easy urethane bushing maintenance.

4130 chromoly laser cut plates are fully boxed and include internal gussets.

Three stage powder coat includes a durable clear coat.

Hand crafted in the U.S.A.

NOT COMPATIBLE WITH 4"-7" SPINDLE/DROP BRACKET LIFTS.
