UPPER CONTROL ARMS - 3RD GEN TUNDRA

2022-CURRENT TOYOTA TUNDRA SUSPENSION

URETHANE BUSHING PIVOT UNIBALL UCA
PART #87502
$938.50

2022-CURRENT TOYOTA TUNDRA SUSPENSION1-01-3rd-gen-toyota-tundra-pnw-woods-forest-trails-total-chaos-web2-01-3rd-gen-toyota-tundra-desert-395-north-alabama-hills-web3-01-2022-Tundra-Fenderwell-King-Shocks-Total-Chaos-UCA-lift-kit4-01-3rd-gen-tundra-alabama-hills-off-road-mountains-web5-01-3rd-gen-tundra-sunset-fenderwell-king-shocks-total-chaos-web6-01-3rd-gen-toyota-tundra-off-road-jump-web7-01-lifted-3rd-gen-toyota-tundra-off-road-roost-dunes-sand-web8-01-2022-toyota-tundra-upper-control-arms-king-coilovers
INSTALL INSTRUCTIONS



WHY

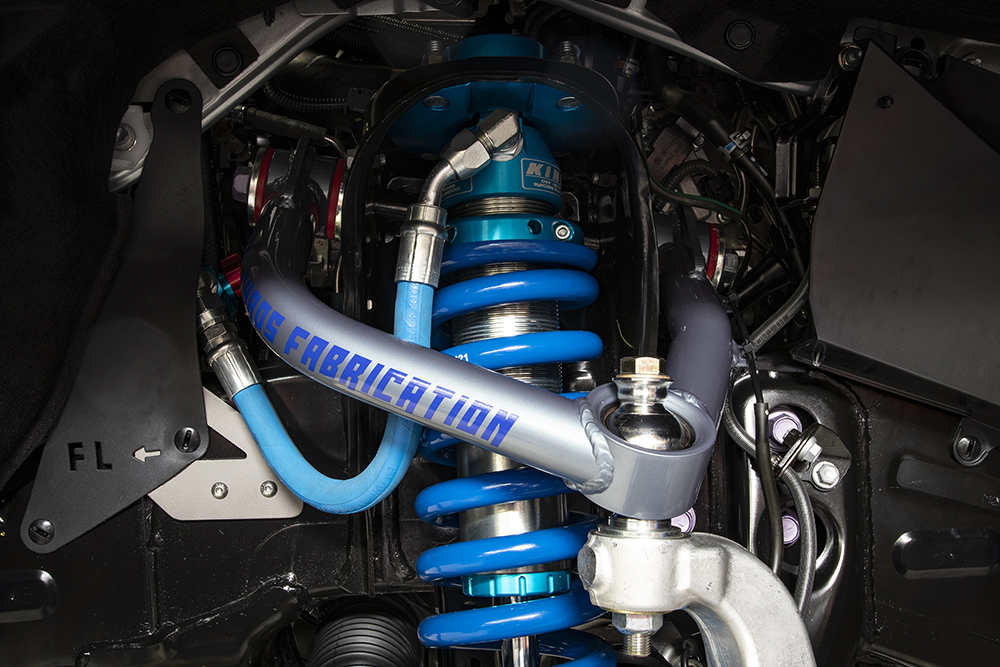

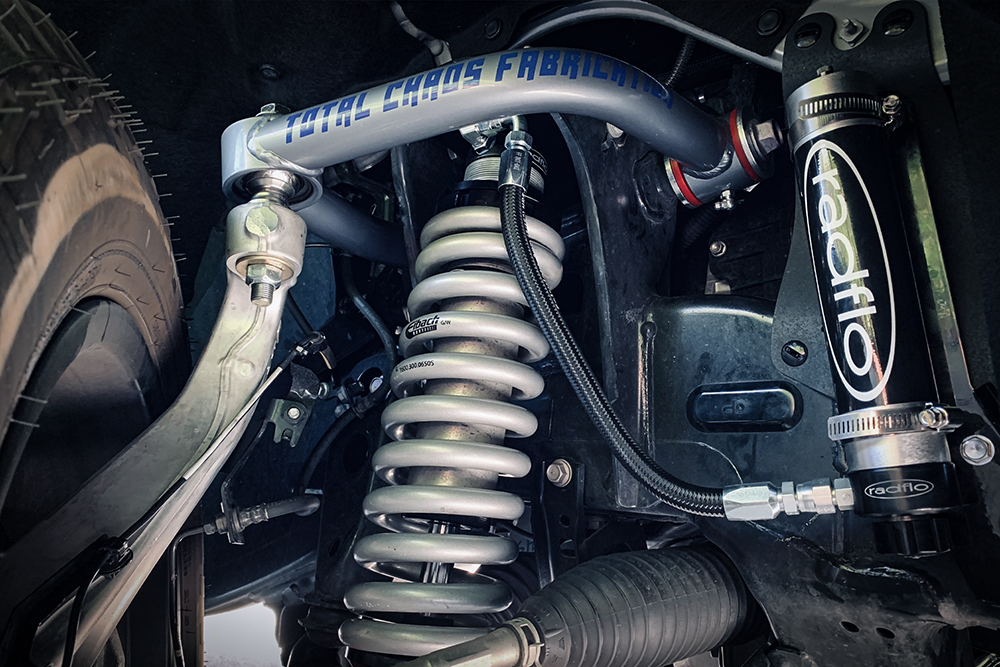

Lifting the front of a vehicle with a set of coilovers may be step one in gaining more off-road performance, however installing just an aftermarket shock can cause limitations without upgrading the Upper Control Arm too. TC upper arms add component durability and allow for individual parts to be replaced including bushings and uniballs. Our Tundra arms allow ample clearance for aftermarket reservoir hoses needed when upgrading your shocks.

TC tubular Tundra arms provide more clearance and will allow a 3.0" diameter coil over shock to be installed.

FEATURES

UCA's are designed with added caster to aid in retaining factory alignment specs when aftermarket lift kits are installed. This reduces the darting or wandering in the vehicle's steering when 2.5''-3'' lift kits are installed.

Urethane bushings reduce bushing deflection compared to stock rubber bushings.

4130 chromoly tubular upper control arms are 100% bolt on and hand crafted in the U.S.A.

CNC tapered spindle adapters convert the factory ball joint to a 1" uniball for added component strength & maximum wheel travel.

TOTAL CHAOS includes 1" I.D. uniballs that feature a heat-treated stainless-steel ball & heat-treated stainless-steel race for maximum corrosion resistance and component longevity. These uniballs also feature a military grade PTFE woven fabric liner that helps prevent noise.

Custom profile upper and lower hi-misalignment spacers maximize droop wheel travel and are machined from heat treated 17-4 stainless steel.

Control arm pivots include zerk fittings to grease the bushings and inner sleeves without disassembly.

3 stage powder coat process includes a durable clear coat to provide a long lasting finish.

Complete Grade 8 hardware kit is included.

PARTS INCLUDED

WHEEL & TIRE

17" Wheel: 17" x 8.5" | 6.2" backspace    Tire: 35x12.50R17

SHOCK INFO


PART #: KNG-25001-396A

PART #: 6CT 011 1A






UPPER CONTROL ARMS - 3RD GEN TUNDRA
2022-CURRENT TOYOTA TUNDRA SUSPENSION

URETHANE BUSHING PIVOT UNIBALL UCA
PART #87502
$938.50

INSTALL INSTRUCTIONS

2022-CURRENT TOYOTA TUNDRA SUSPENSION


WHY

Lifting the front of a vehicle with a set of coilovers may be step one in gaining more off-road performance, however installing just an aftermarket shock can cause limitations without upgrading the Upper Control Arm too. TC upper arms add component durability and allow for individual parts to be replaced including bushings and uniballs. Our Tundra arms allow ample clearance for aftermarket reservoir hoses needed when upgrading your shocks.

TC tubular Tundra arms provide more clearance and will allow a 3.0" diameter coil over shock to be installed.

FEATURES

UCA's are designed with added caster to aid in retaining factory alignment specs when aftermarket lift kits are installed. This reduces the darting or wandering in the vehicle's steering when 2.5''-3'' lift kits are installed.

Urethane bushings reduce bushing deflection compared to stock rubber bushings.

4130 chromoly tubular upper control arms are 100% bolt on and hand crafted in the U.S.A.

CNC tapered spindle adapters convert the factory ball joint to a 1" uniball for added component strength & maximum wheel travel.

TOTAL CHAOS includes 1" I.D. uniballs that feature a heat-treated stainless-steel ball & heat-treated stainless-steel race for maximum corrosion resistance and component longevity. These uniballs also feature a military grade PTFE woven fabric liner that helps prevent noise.

Custom profile upper and lower hi-misalignment spacers maximize droop wheel travel and are machined from heat treated 17-4 stainless steel.

Control arm pivots include zerk fittings to grease the bushings and inner sleeves without disassembly.

3 stage powder coat process includes a durable clear coat to provide a long lasting finish.

Complete Grade 8 hardware kit is included.

PARTS INCLUDED

WHEEL & TIRE

17" Wheel: 17" x 8.5" | 6.2" backspace    Tire: 35x12.50R17

SHOCK INFO


PART #: KNG-25001-396A

PART #: 6CT 011 1A
1-01-3rd-gen-toyota-tundra-pnw-woods-forest-trails-total-chaos-web2-01-3rd-gen-toyota-tundra-desert-395-north-alabama-hills-web3-01-2022-Tundra-Fenderwell-King-Shocks-Total-Chaos-UCA-lift-kit4-01-3rd-gen-tundra-alabama-hills-off-road-mountains-web5-01-3rd-gen-tundra-sunset-fenderwell-king-shocks-total-chaos-web6-01-3rd-gen-toyota-tundra-off-road-jump-web7-01-lifted-3rd-gen-toyota-tundra-off-road-roost-dunes-sand-web8-01-2022-toyota-tundra-upper-control-arms-king-coilovers
