UPPER CONTROL ARMS - 100 SERIES LAND CRUISER

1998-2007 TOYOTA LAND CRUISER 100 SERIES SUSPENSION

Urethane Bushing Pivot Uniball UCA
PART #99500
$917.72

1998-2007 TOYOTA LAND CRUISER 100 SERIES SUSPENSION1-01-toyota-land-cruiser-100-series-overland-4x4-4wd-camping-alabama-hills
INSTALL INSTRUCTIONS



WHY

Lifting the front of a vehicle with a set of coilovers may be step one in gaining more off-road performance, however installing just an aftermarket shock can cause limitations without upgrading the Upper Control Arm too.

Our UCA's are designed to add caster - offering better straight line tracking, as well as improved high speed stability and cornering. TC upper arms add component durability and allow for individual parts to be replaced including bushings and uniballs.

FEATURES

- TC upper control arms combined with extended length coil over shocks will allow for up to 1" of additional wheel travel.

- Designed to maintain factory alignment specs on vehicles with 1.5"-3" lift kits.

- 4130 chromoly tubular upper control arms are 100% bolt on and hand crafted in the U.S.A.

- The uniball cup placement is moved to correct the caster angle that is lost with aftermarket lift kits. Vehicles that have an increased ride height are harder to align. The added caster reduces the darting or wandering in the vehicles steering and helps retain the factory alignment specifications.

- 1" I.D. uniballs feature a heat-treated stainless-steel ball & heat-treated stainless-steel race for maximum corrosion resistance and component longevity. These uniballs also feature a military grade PTFE woven fabric liner that helps prevent noise and reduce maintenance.

- CNC tapered spindle adapters convert the factory ball joint to a 1" uniball for easy installation.

- Custom profile upper and lower hi-misalignment spacers are machined from 17-4 stainless-steel to maximize strength and wheel travel.

- Urethane bushings reduce deflection compared to stock rubber bushings.

- Control arm pivots include zerk fittings to grease the bushings and inner sleeves without disassembly.

- 3 stage powder coat process includes a durable clear coat to provide a long lasting finish.

- Complete Grade 8 hardware kit is included.

PARTS INCLUDED

WHEEL & TIRE

17" Wheel: 17" x 8.5" | 4.75" backspace    Tire: 285/70R17

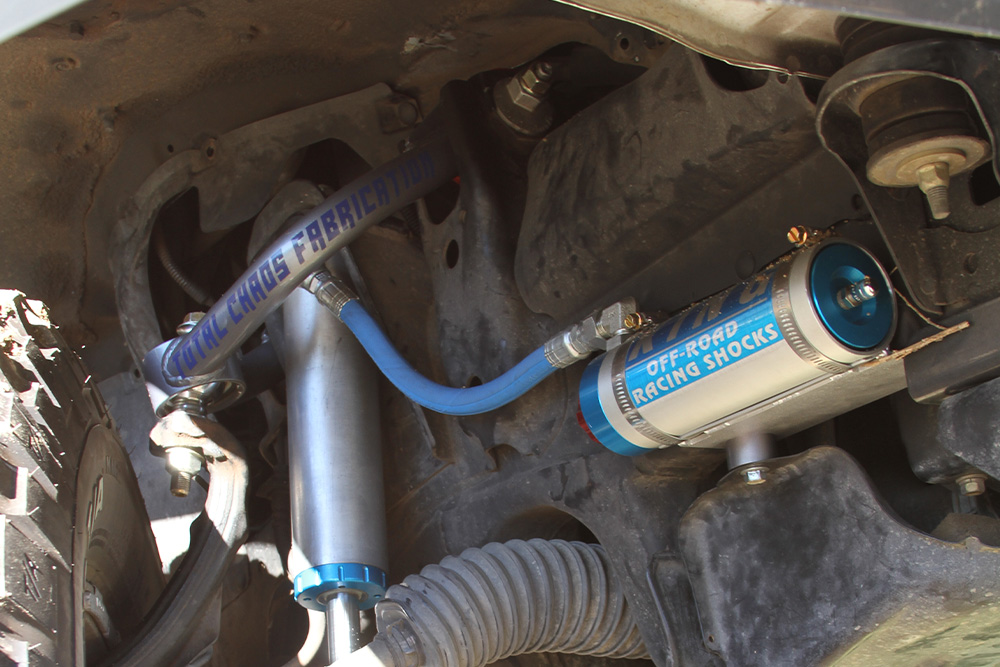

SHOCK INFO


PART #: 25001-259A

PART #: 6ST 004 1R
