UPPER CONTROL ARMS - LEXUS GX460

2010-2023 LEXUS GX460 SUSPENSION

Urethane Bushing Pivot Uniball UCA
PART #96504
$967.27

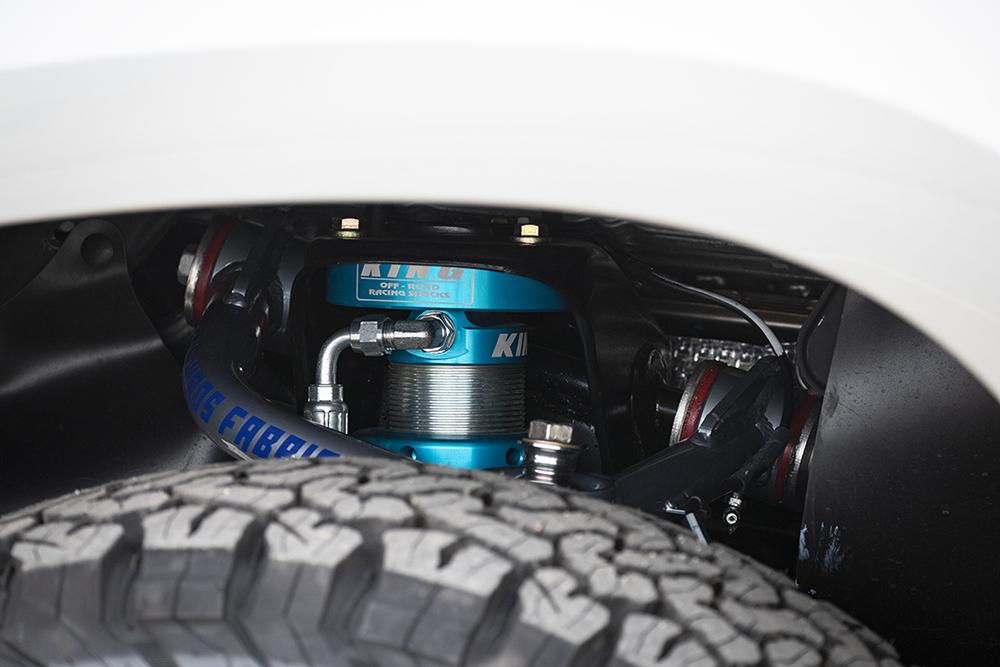

2010-2023 LEXUS GX460 SUSPENSION1-01-Lexus-GX460-overland-build-baja-designs-roof-rack-maxtraxx2-01-lexus-gx-460-roost-glamis-dunes-off-road-baja-designs3-01-lexus-gx460-fenderwell-king-shocks-front-suspension-lift4-01-lexus-gx460-king-shocks-total-chaos-upper-control-arms
INSTALL INSTRUCTIONS



WHY

Lifting the front of a vehicle with a set of coilovers may be step one in gaining more off-road performance, however installing just an aftermarket shock can cause limitations without upgrading the Upper Control Arm too.

Adding 2-3'' of lift on the vehicle will compromise your Toyota's factory alignment specs from lost caster. Our UCA's are designed to add 3 degrees of caster - offering better straight line tracking, as well as improved high speed stability and cornering. TC UCA's are designed to provide 1'' of added droop wheel travel when they are installed with a pair of factory replacement ''extended travel'' coil over shocks.

TC upper arms add component durability and allow for individual parts to be replaced including bushings and uniballs.

Total Chaos Fabrication Lexus GX460

FEATURES

UCA's are designed with added caster to aid in retaining factory alignment specs when aftermarket lift kits are installed. This reduces the darting or wandering in the vehicle's steering when 2.5" -3" lift kits are installed.

Upper control arms combined with extended length coilover shocks will allow for up to 1" of additional wheel droop travel.

Will work with all aftermarket brand shocks.

Only upper control arm on the market that allows a 3.0" diameter coilover shock to be installed with no contact.

Urethane bushings reduce bushing deflection compared to stock rubber bushings.

4130 chromoly tubular upper control arms are 100% bolt on.

CNC tapered spindle adapters convert the factory ball joint to a 1" uniball for added component strength & maximum wheel travel.

TOTAL CHAOS includes 1" I.D. uniballs that feature a heat-treated stainless-steel ball & heat-treated stainless-steel race for maximum corrosion resistance and component longevity. These uniballs also feature a military grade PTFE woven fabric liner that helps prevent noise.

Custom profile upper and lower hi-misalignment spacers maximize droop wheel travel and are machined from heat treated 17-4 stainless steel.

Control arm pivots include zerk fittings to grease the bushings and inner sleeves without disassembly.

3 stage powder coat process includes a durable clear coat to provide a long lasting finish.

Hand crafted in the U.S.A.

Complete Grade 8 hardware kit is included.

Upper Control Arm fits: 2010 GX460, 2011 GX460, 2012 GX460, 2013 GX460, 2014 GX460, 2015 GX460, 2016 GX460, 2017 GX460, 2018 GX460, 2019 GX460, 2020 GX460, 2021 GX460, 2022 GX460, 2023 GX460.

PARTS INCLUDED

WHEEL & TIRE

17" Wheel: 17" x 8.5" | 4.75" backspace    Tire: 285/70R17

SHOCK INFO


PART #: KNG-25001-243A-EXT

IN STOCK - $2,287

PART #: 90118

PART #: 6CT 008 1A

HEIM JOINT PIVOT UPGRADE
