3RD GEN 4RUNNER +3.5 INCH LONG TRAVEL KIT: HEIM UCA

1996-2002 TOYOTA 4RUNNER LONG TRAVEL SUSPENSION

PERFORMANCE SUSPENSION SYSTEM
PART #96000BK-4H
$4,106.44

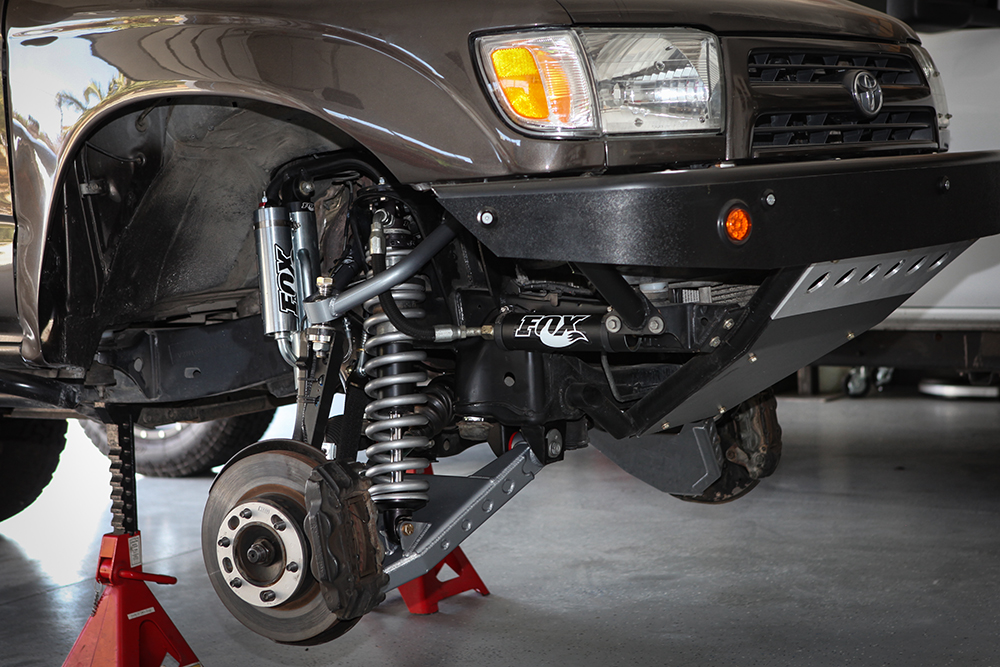

1996-2002 TOYOTA 4RUNNER LONG TRAVEL SUSPENSION1-01-3rd-gen-4runner-long-travel-build2-01-3rd-gen-4runner-long-travel-fenderwell-fox-shocks3-01-white-3rd-gen-4runner-desert-roost-dirt-cloud-overland-rowdy

WHY

Wider suspension increases the amount of wheel travel you cycle and allows you to maintain traction in rougher terrain. A wider track width will improve the vehicles cornering stability on and off-road.

Long travel systems offer better ride quality than stock length kits while adding component strength to any off-road adventure. Maximize off road performance and tuneability. Customize your ride quality for added vehicle weight and specific terrain with dual shock capability.

FEATURES

Upper and lower control arms are extended to increase the track width 3.5" per side and bolt to the factory control arm mounting locations.

12.5" of wheel travel with 4WD.

Upper ball joints are upgraded to 1" uniballs for additional strength and wheel travel.

TOTAL CHAOS 1" I.D. uniballs feature a heat treated stainless steel ball & race for superior corrosion resistance and component strength. A military grade PTFE woven fabric liner surrounds the uniball which helps prevent noise.

Heim pivot upper control arms are fully adjustable allowing maximum tuning of caster and camber for race applications.

Ships pre-set to factory length.

Lower control arms are internally gusseted, fully boxed and include dual shock tabs.

Secondary shock tabs are included to allow a TC specific external bypass shock to be installed for additional dampening control. Maximize tunability and performance. Customize your ride quality for added vehicle weight and specific terrain.

Adjustable limit strap clevises are supplied to properly limit suspension droop wheel travel and allow necessary adjustments during the life of the limit strap. Straps will stretch over time.

Kit includes: DOT approved stainless steel braided brake lines that do not expand. TC custom 17-4 stainless hi-misalignment spacers. Grade 8 mounting hardware.

Install TC modified Tundra axles to retain 4WD - SOLD SEPARATELY.

Fiberglass fenders are required.

Hand crafted in the U.S.A.

3 stage powder coat process includes a durable clear coat to provide a long lasting finish.

TC specific 2.5" long travel coil over shocks bolt to the factory coil bucket location.

Extended travel shocks are too short and will not work.

NOT COMPATIBLE WITH 4"-7" SPINDLE/DROP BRACKET LIFTS.

WHEEL & TIRE

16" Wheel: 16" x 8" | 4.5" backspace    Tire: 285/75R16

17" Wheel: 17" x 8.5" | 4.75" backspace    Tire: 285/70R17

SHOCK INFO


PART #: KNG-TC5151-03 (COILOVER): IN STOCK - $1,523
PART# KNG-TC1151-34 (BYPASS): IN STOCK - $1,899








3RD GEN 4RUNNER +3.5 INCH LONG TRAVEL KIT: HEIM UCA
1996-2002 TOYOTA 4RUNNER LONG TRAVEL SUSPENSION

PERFORMANCE SUSPENSION SYSTEM
PART #96000BK-4H
$4,106.44

IN STOCK - CALL TO ORDER
1996-2002 TOYOTA 4RUNNER LONG TRAVEL SUSPENSION


WHY

Wider suspension increases the amount of wheel travel you cycle and allows you to maintain traction in rougher terrain. A wider track width will improve the vehicles cornering stability on and off-road.

Long travel systems offer better ride quality than stock length kits while adding component strength to any off-road adventure. Maximize off road performance and tuneability. Customize your ride quality for added vehicle weight and specific terrain with dual shock capability.

FEATURES

Upper and lower control arms are extended to increase the track width 3.5" per side and bolt to the factory control arm mounting locations.

12.5" of wheel travel with 4WD.

Upper ball joints are upgraded to 1" uniballs for additional strength and wheel travel.

TOTAL CHAOS 1" I.D. uniballs feature a heat treated stainless steel ball & race for superior corrosion resistance and component strength. A military grade PTFE woven fabric liner surrounds the uniball which helps prevent noise.

Heim pivot upper control arms are fully adjustable allowing maximum tuning of caster and camber for race applications.

Ships pre-set to factory length.

Lower control arms are internally gusseted, fully boxed and include dual shock tabs.

Secondary shock tabs are included to allow a TC specific external bypass shock to be installed for additional dampening control. Maximize tunability and performance. Customize your ride quality for added vehicle weight and specific terrain.

Adjustable limit strap clevises are supplied to properly limit suspension droop wheel travel and allow necessary adjustments during the life of the limit strap. Straps will stretch over time.

Kit includes: DOT approved stainless steel braided brake lines that do not expand. TC custom 17-4 stainless hi-misalignment spacers. Grade 8 mounting hardware.

Install TC modified Tundra axles to retain 4WD - SOLD SEPARATELY.

Fiberglass fenders are required.

Hand crafted in the U.S.A.

3 stage powder coat process includes a durable clear coat to provide a long lasting finish.

TC specific 2.5" long travel coil over shocks bolt to the factory coil bucket location.

Extended travel shocks are too short and will not work.

NOT COMPATIBLE WITH 4"-7" SPINDLE/DROP BRACKET LIFTS.

WHEEL & TIRE

16" Wheel: 16" x 8" | 4.5" backspace    Tire: 285/75R16

17" Wheel: 17" x 8.5" | 4.75" backspace    Tire: 285/70R17

SHOCK INFO


PART #: KNG-TC5151-03 (COILOVER): IN STOCK - $1,523
PART# KNG-TC1151-34 (BYPASS): IN STOCK - $1,899
1-01-3rd-gen-4runner-long-travel-build2-01-3rd-gen-4runner-long-travel-fenderwell-fox-shocks3-01-white-3rd-gen-4runner-desert-roost-dirt-cloud-overland-rowdy
