EXPEDITION SERIES STOCK LENGTH KDSS LOWER CONTROL ARMS - DUAL SHOCK

2010-2022 TOYOTA PRADO 150 KDSS LOWER CONTROL ARMS

PERFORMANCE LOWER A-ARM
PART #86555-E-10FJ-KDSS
$2,322.79

2010-2022 TOYOTA PRADO 150 KDSS LOWER CONTROL ARMS86555-E-10FJ-KDSS_Image_286555-E-10FJ-KDSS_Image_386555-E-10FJ-KDSS_Image_4Total Chaos KDSS Lower Control Arm Detail 1 - WebTotal Chaos KDSS Lower Control Arm Detail 2 - WebTotal Chaos KDSS Lower Control Arm Detail 3 - Web
CALL TO PLACE ORDER
INSTALL INSTRUCTIONS



FEATURES

- Light weight. Maximum ground clearance. Fully rebuildable. Bolt on.

- Pocket added at the coilover shock tabs maximizes clearance allowing for a wider range of shocks to be used - up to 3.0". Will work with all brands of aftermarket shocks.

- KDSS mounts on the lower control arm re-use factory Toyota hardware for ease of installation.

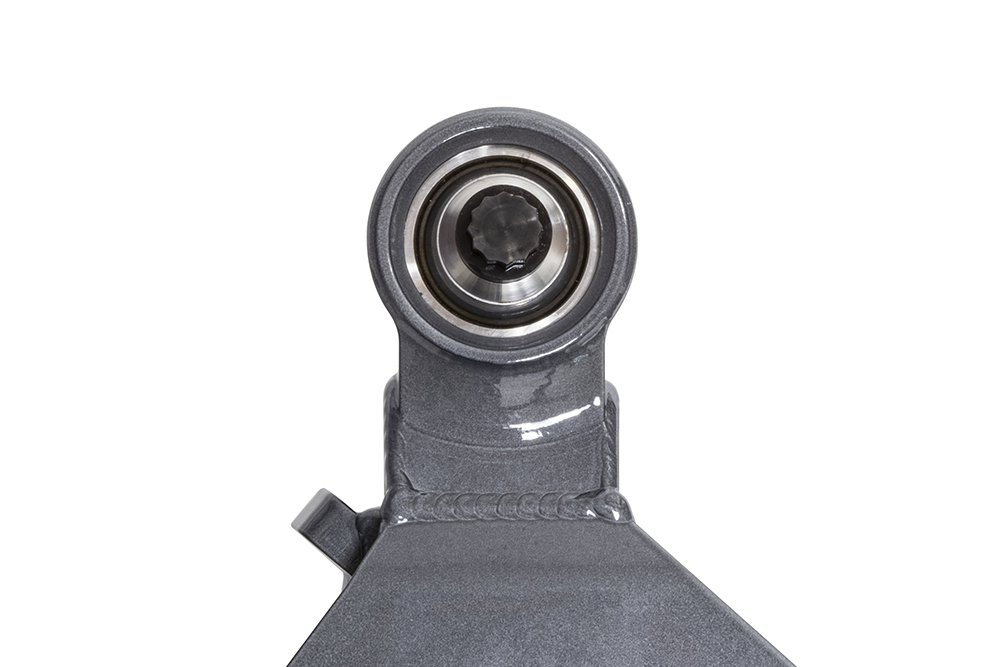

- Billet CNC machined uniball cup houses a 1'' 100% stainless steel uniball that upgrades the factory ball joints for greater articulation and strength.

- Integrated steering stop tabs retain factory turning angles.

- Urethane pivot bushings reduce deflection compared to a rubber bushing offering a tigher steering feel. Zerk fittings allow for easy maintenance.

- 4130 chromly laser cut plates are fully boxed and include internal gussets.

- Stock length replacment lower A-arm dual shock capable.

- Secondary shock mount tabs allow a bypass shock to be added for maximum tunability. Dual shock configurations will require TC shock hoop PT 86610.

- All dual shock lower control arms require a 1.25" wheel spacer to keep the tire from hitting the second shock mount at full steering lock even if you do not have a secondary shock installed.

- Three stage powder coat includes a durable clear coat.

- 100% MADE IN U.S.A.

PARTS INCLUDED







EXPEDITION SERIES STOCK LENGTH KDSS LOWER CONTROL ARMS - DUAL SHOCK
2010-2022 TOYOTA PRADO 150 KDSS LOWER CONTROL ARMS

PERFORMANCE LOWER A-ARM
PART #86555-E-10FJ-KDSS
$2,322.79

CALL TO PLACE ORDER
INSTALL INSTRUCTIONS



FEATURES

- Light weight. Maximum ground clearance. Fully rebuildable. Bolt on.

- Pocket added at the coilover shock tabs maximizes clearance allowing for a wider range of shocks to be used - up to 3.0". Will work with all brands of aftermarket shocks.

- KDSS mounts on the lower control arm re-use factory Toyota hardware for ease of installation.

- Billet CNC machined uniball cup houses a 1'' 100% stainless steel uniball that upgrades the factory ball joints for greater articulation and strength.

- Integrated steering stop tabs retain factory turning angles.

- Urethane pivot bushings reduce deflection compared to a rubber bushing offering a tigher steering feel. Zerk fittings allow for easy maintenance.

- 4130 chromly laser cut plates are fully boxed and include internal gussets.

- Stock length replacment lower A-arm dual shock capable.

- Secondary shock mount tabs allow a bypass shock to be added for maximum tunability. Dual shock configurations will require TC shock hoop PT 86610.

- All dual shock lower control arms require a 1.25" wheel spacer to keep the tire from hitting the second shock mount at full steering lock even if you do not have a secondary shock installed.

- Three stage powder coat includes a durable clear coat.

- 100% MADE IN U.S.A.

PARTS INCLUDED

Total Chaos KDSS Lower Control Arm Detail 3 - Web86555-E-10FJ-KDSS_Image_286555-E-10FJ-KDSS_Image_386555-E-10FJ-KDSS_Image_4Total Chaos KDSS Lower Control Arm Detail 1 - WebTotal Chaos KDSS Lower Control Arm Detail 2 - WebTotal Chaos KDSS Lower Control Arm Detail 3 - Web
