+3.5 INCH STANDARD SERIES LONG TRAVEL KIT

2003-2009 LEXUS GX470 LONG TRAVEL SUSPENSION - HEIM PIVOT UCA

PERFORMANCE SUSPENSION SYSTEM
PART #86004-H
$3,993.94

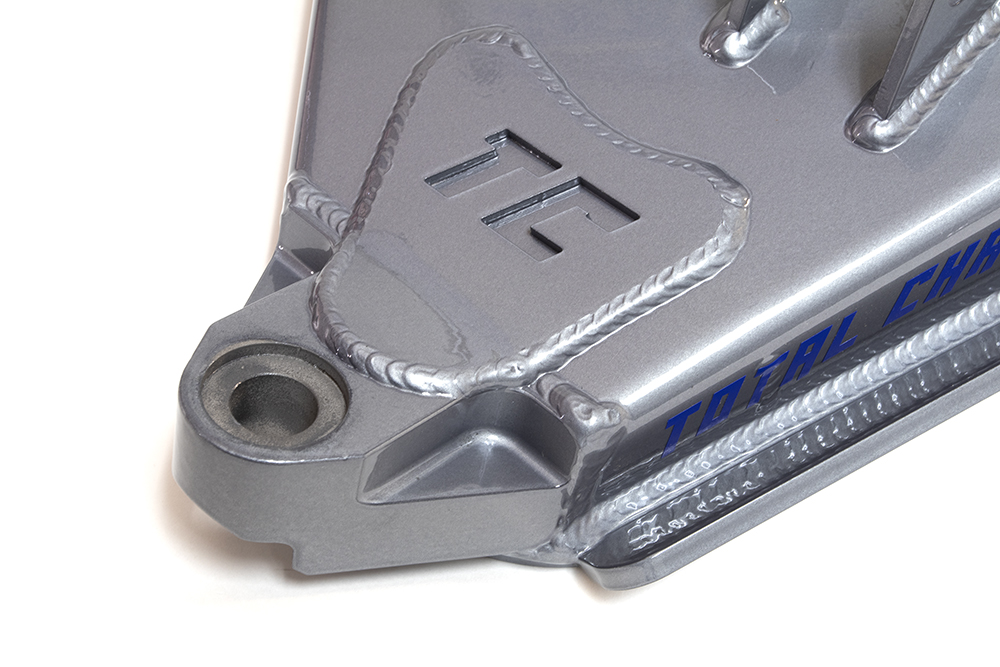

2003-2009 LEXUS GX470 LONG TRAVEL SUSPENSION - HEIM PIVOT UCAtotal-chaos-standard-series-lower-control-arm-detail-2total-chaos-standard-series-lower-control-arm-detail-3
CALL TO PLACE ORDER
INSTALL INSTRUCTIONS



FEATURES

- 100% bolt on system.

- Pan hard bar includes 3/4" heims on both ends making it fully adjustable.

- 1.5" more droop wheel travel over stock links when longer shocks are installed.

- Constructed from 1 1/4" .375 wall 4130 chromoly tubing for maximum strength.

- Includes urethane pivot bushings and zerk fitting for easy maintenance.

- Hi-misalignment spacers and hardware are included.

- Upper and lower links are designed to incorporate a heim joint on non-axle side making this rear link system adjustable in length. Ships pre-set to factory length.

PARTS INCLUDED

WHEEL & TIRE

17" Wheel: 17" x 8.5" | 4.75" backspace    Tire: 285/70R17

SHOCK INFO


PART #: TC5119-03A (COILOVERS W/ ADJUSTERS): IN STOCK - $2,098
PART#:TC5119-03 (NO ADJUSTERS): IN STOCK - $1,743

PART#: TC1119-34 (BYPASS)






+3.5 INCH STANDARD SERIES LONG TRAVEL KIT
2003-2009 LEXUS GX470 LONG TRAVEL SUSPENSION - HEIM PIVOT UCA

PERFORMANCE SUSPENSION SYSTEM
PART #86004-H
$3,993.94

CALL TO PLACE ORDER
INSTALL INSTRUCTIONS

2003-2009 LEXUS GX470 LONG TRAVEL SUSPENSION - HEIM PIVOT UCA


FEATURES

- 100% bolt on system.

- Pan hard bar includes 3/4" heims on both ends making it fully adjustable.

- 1.5" more droop wheel travel over stock links when longer shocks are installed.

- Constructed from 1 1/4" .375 wall 4130 chromoly tubing for maximum strength.

- Includes urethane pivot bushings and zerk fitting for easy maintenance.

- Hi-misalignment spacers and hardware are included.

- Upper and lower links are designed to incorporate a heim joint on non-axle side making this rear link system adjustable in length. Ships pre-set to factory length.

PARTS INCLUDED

WHEEL & TIRE

17" Wheel: 17" x 8.5" | 4.75" backspace    Tire: 285/70R17

SHOCK INFO


PART #: TC5119-03A (COILOVERS W/ ADJUSTERS): IN STOCK - $2,098
PART#:TC5119-03 (NO ADJUSTERS): IN STOCK - $1,743

PART#: TC1119-34 (BYPASS)
total-chaos-standard-series-lower-control-arm-detail-2total-chaos-standard-series-lower-control-arm-detail-3
